P1.86-2.5 Small Pitch-C series LED Display Ultra broad perspective LED Screen high grayscale Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL, 3C |
| Model Number: | P1.86-P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 15 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 500pcs |
|
Detail Information |
|||
| Product: | P1.86-2.5 Small Pitch-C Series LED Display | Cabinet Weight(KG): | 2.42KG |
|---|---|---|---|
| Protection Level: | IP40 | Life Span: | ≥50000 Hours |
| Max.Power(W): | 80W | Refresh Rate(Hz): | 3840Hz / 1920Hz |
| Maintenance Method: | Pre Maintenance | ||
| Highlight: | Ultra broad perspective LED Screen,high grayscale LED Screen,high grayscale LED Display |
||
Product Description

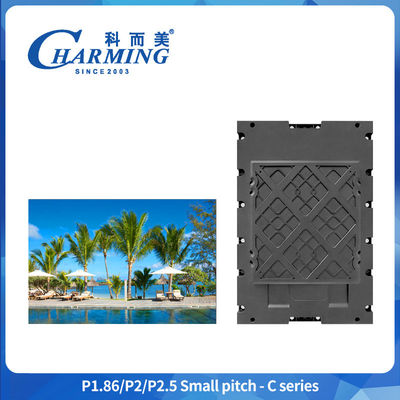

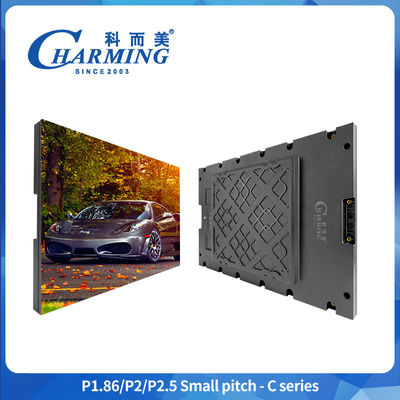

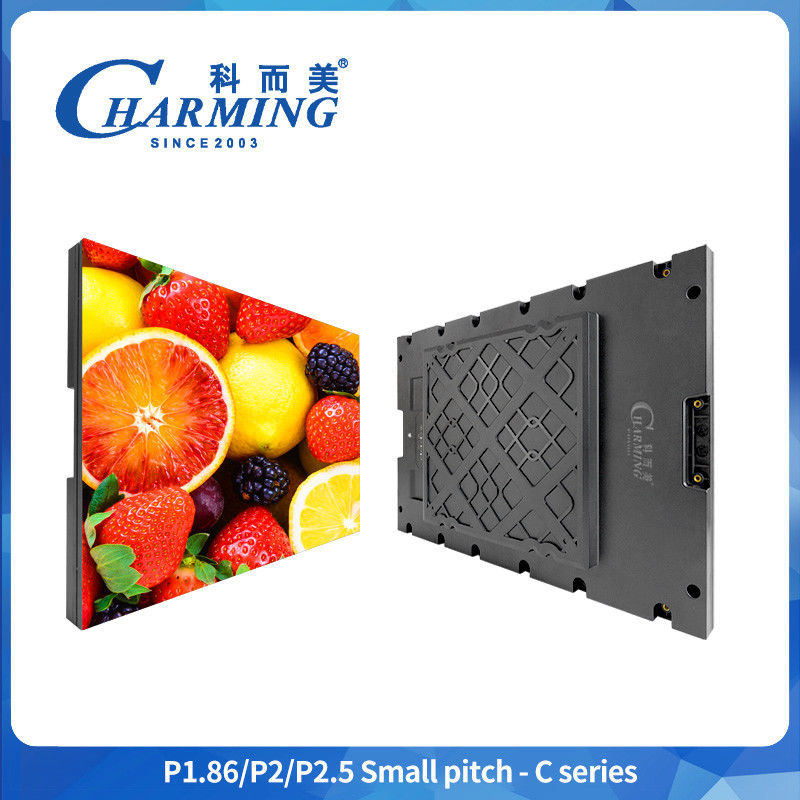

P1.86-2.5 Small Pitch-C series LED Display Ultra broad perspective LED Screen high grayscale Display
Product Description
- Convenient installation, Weigh only 2.42kg
- High Refresh, high contrast, high gray scale
- Ultra broad perspective and Integrated design
Technical Specification
| Type Number |
P1.86
|
P2
|
P2.5
|
||
| Dimension(MM) |
320×480×52MM
|
||||
| Max.Power(W) |
80W
|
||||
| Cabinet Weight(KG) |
2.42KG
|
||||
| Brightness(CD/m) |
≥600CD/㎡ |
≥600CD/㎡ |
≥800CD/㎡
|
||
| LED Standard | SMD1515 | SMD1515 | |||
| Viewing Angle |
130°
|
||||
| Protection Level | IP40 | ||||
| Refresh Rate(Hz) |
3840Hz / 1920Hz
|
||||
|
Pixel Density(Dot/㎡)
|
289050Dot/㎡
|
250000Dot/㎡
|
160000Dot/㎡
|
||
| Scan Mode |
1/43Scan
|
1/40Scan
|
|||
|
Working Voltage |
AC 110V/220V,50/60HZ
|
||||
| Cabinet Material | Magnesium Alloy | ||||
| Maintenance Method |
Pre maintenance
|
||||
| Grey Level |
14-16 Bit
|
||||
| Working Temperature |
-20~70℃
|
||||
| Working Humidity |
10%-65%RH
|
||||
| Life Span | ≥50000 Hours | ||||
