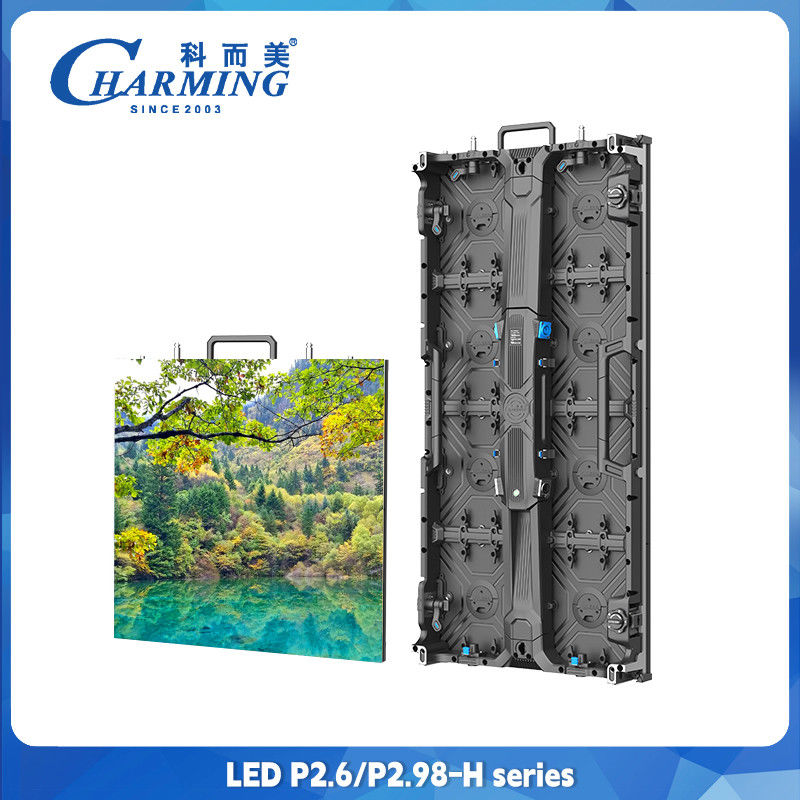

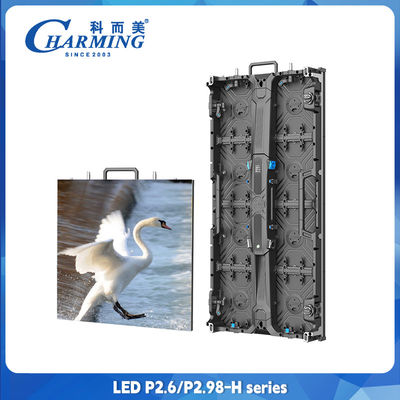

Indoor Full Color HD Video Wall Screen P2.6 P2.9 P3.91 P4.81 500mm*500mm 500mm*1000mm P3.91 Led Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 500*500*85MM /500*1000*85MM | Max.Power(W): | 100W / 200W |
|---|---|---|---|
| Cabinet Weight(KG): | 7.2KG / 12KG | Refresh Rate (Hz): | 3840Hz / 1920 Hz |
| Pixel Pitch(MM): | 2.98MM / 2.6MM | LED Standard: | SMD 2020 |
| Pixel Density(Dot/m²): | 65536 Dot/ M² | Brightness (CD/m²): | 600 CD/ ㎡ |
| Viewing Angle: | 120 ° | Life Span: | ≥ 50000 Hours |
| Highlight: | P4.81 Video Wall Screen,500mm*500mm Video Wall Screen,P2.9 Video Wall Screen |
||
Product Description
Indoor Full Color HD Video Wall Screen P2.6 P2.9 P3.91 P4.81 500mm*500mm 500mm*1000mm P3.91 Led Screen
Product feature:
1): Ultra thin, Light weight;
2): Golden-Pleated Connecting seat;
3): Front maintenance;
4): Aluminum alloy material;
product introduce:
1)thichness only 85MM; 500*500mm cabinet only 7.2KG; 500*1000mm cabinet only 12KG.
2)Using gold-plated connecti on seat, the signal is more stable Foolproof design to reduce installation error rate.
3)Strong rigidity, oxidation resistance,not easy to deform, smoother splicing.
4)Support hoisting, leasingtruss installation, frame fixed installation.
Product parameter
| Dimension(MM) | 500*500*85mm/500*1000*85mm |
| Max.Power(w) | 100W/200W |
| Cabinet Weight(KG) |
7.2KG/12KG |
| Brightness(CD/m²) | ≥600 CD/㎡ |
| LED Standard | SMD2020 |
| Viewing Angle | 120° |
| Protection Level | IP50 |
| Refresh Rate(Hz) | 1920Hz/3840Hz |
| Pixel Pitch(MM) | 2.6/2.98MM |
| Scan Mode | 1/16Scan |
| Pixel Density(Dot/㎡) | 65536 Dot/m² |
| Cabinet Material | Aluminum Alloy |
| Maintenance Method | Front Maintenance |
| Grey Level | 12-16 Bit |
| Working Temperature | -20~60℃ |
| Working Humidity | 10%-90%RH |
| Life Span | ≥50000 Hours |
| Working voltage | AC 110W/220V,50V60HZ |
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
led display
1. Die-casting aluminum , low temp-rise
2.Hard Connection, HUB card design, Without Any Cables
3. Magnetic front service or Back service with screw
4.High-efficiency cooling, No fan ,mute design, noise-free.
5. High refresh rate , low light high gray
6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
7. Lightweight - weighs only 8.6kg, single person can be a single portable, and extremely easy to install;
8. Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements;
