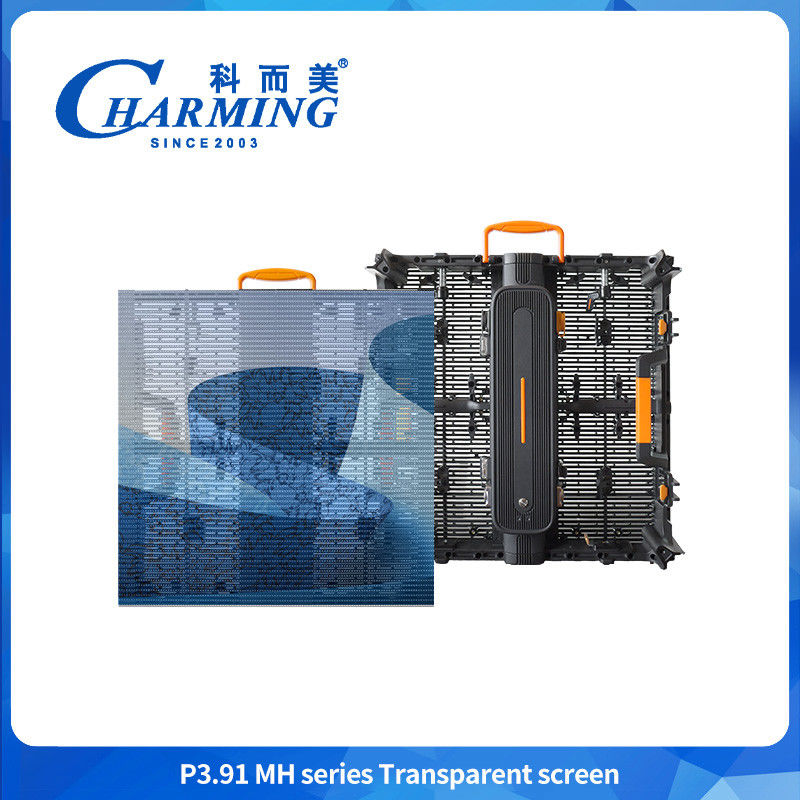

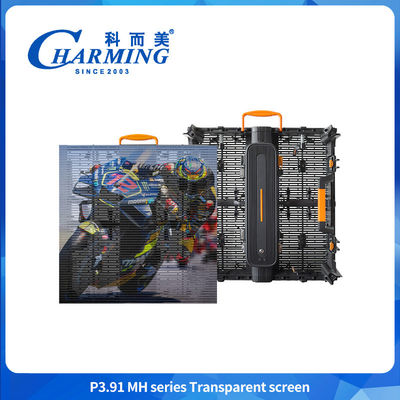

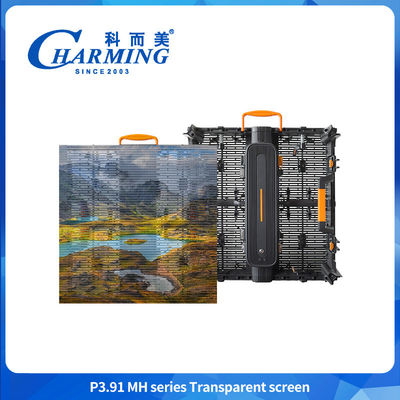

Ultra Lightweight Full Waterproof IP65 High Transparency 4K LED Outdoor P3.91-7.81 Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm-P7.81MM | Size: | 1000x500mm/500x500mm Two Size |
|---|---|---|---|
| Protection Level: | IP65 Full Waterproof Level Function | Materils: | Magnesium Alloy |
| Refresh Rate: | 3840Hz Or More | Brightness: | ≥4500CD/M² Outdoor Brightness |
| Cabinet Weight: | 6KG/12KG | Life Span: | 50000-100000 Hours |
| Control Method: | Nova Star System | ||
| Highlight: | IP65 LED outdoor screen,High Transparency LED outdoor screen,full waterproof LED outdoor screen |
||
Product Description
Ultra Lightweight full waterproof IP65 High Transparency 4K LED outdoor P3.91-7.81 screen n
Features
1,Ultra Light & Slim,Lowest weight in its class, only 7 kg per panel (500 mm x 500 mm x 90 mm) ;
2,500 x 500mm or 500x1000mm die-casting cabinet suitable for outdoor or indoor LED video wall, led screen;
3, easy to calculate the screen size ;
4, Die-casting aluminum molding. Tiny splicing gap, lighter weight(about 6.2kg) & ultra-thin cabinet.
5, With waterproof glue appearance. Front /rear side IP65, which can be used outdoor.
Product Details
Specification
|
Type Number |
P3.91 MH |
|---|---|
|
Dimension(MM) |
1000*500*85.5MM/500*500*85.5MM |
|
Max Power(W) |
300W |
|
Cabinet Weight(KG) |
6KG-12KG |
|
Refresh Rate(Hz) |
3840Hz / 1920Hz |
|
Pixel Pitch(MM) |
3.91MM |
|
Led Standard |
SMD2020 |
|
Pixel Density(Dot/M²) |
32768 Dot/M² |
|
Brightness(CD/M²) |
≥4500CD/M² |
|
Viewing Angle |
140° |
|
IP Rate |
IP65 |
|
Cabinet Material |
Aluminum Alloy |
|
Maintenance |
Back Service |
|
Grey Level |
16 bit |
|
Working Temperature |
20~60℃ |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥50000 Hours |
|
Working Voltage |
AC110V/220V, 50/60Hz |
Case Display
Mainly used in shopping malls, waiting rooms, car buildings,showrooms,
office building glass curtain walls, etc.
