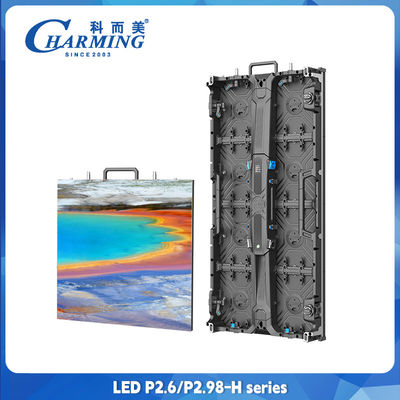

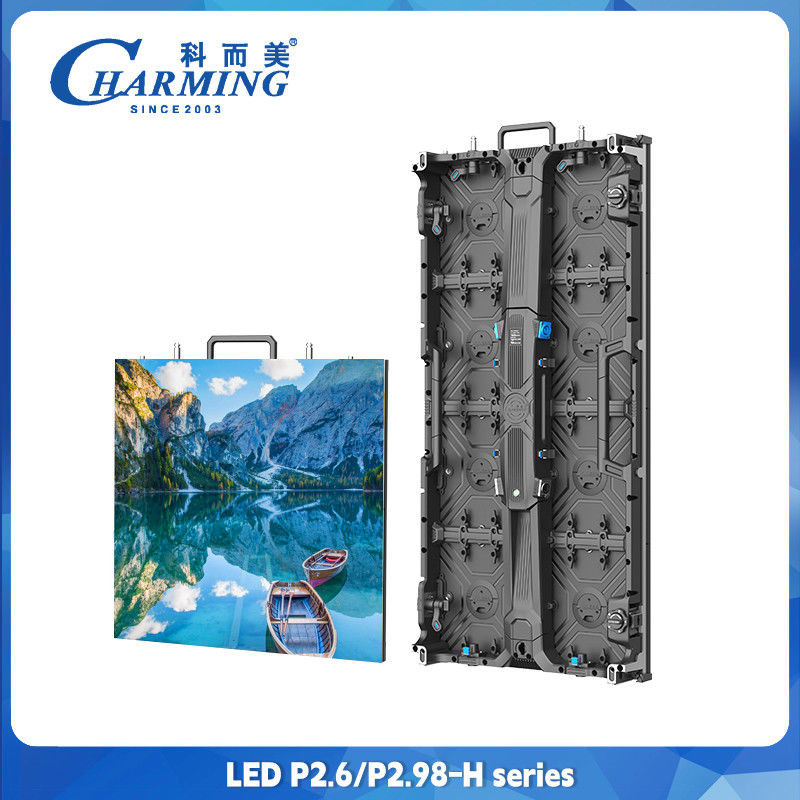

P2.6 Economical Full Color Advertising Video Wall Stage Conference Concert Church Event Outdoor LED Rental Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | p2.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 500x500x85MM / 500x1000x85MM | Max.Power(W): | 100W / 200W |
|---|---|---|---|
| Cabinet Weight(KG): | 7.2KG / 12KG | Refresh Rate(Hz): | 1920 / 3840Hz |
| Pixel Pitch(MM): | 2.6 MM | LED Standard: | LED Standard |
| Pixel Density(Dot/㎡): | 65536 Dot /㎡ | Brightness(CD/㎡): | 4500 CD /㎡ |
| Viewing Angle: | 120 ° | Protection Level: | IP 65 |
| Cabinet Material: | Aluminum Alloy | ||
| Highlight: | Outdoor LED Rental Screen,P2.6 LED Rental Screen,Concert LED Rental Screen |
||
Product Description
P2.6 Economical Full Color Advertising Video Wall Stage Conference Concert Church Event Outdoor LED Rental Screen
Product feature:
1): Ultra thin, Light weight;
2): Golden-Pleated Connecting seat;
3): Front maintenance;
4): Aluminum alloy material;
product introduce:
1)thichness only 85MM; 500*500mm cabinet only 7.2KG; 500*1000mm cabinet only 12KG.
2)Using gold-plated connecti on seat, the signal is more stable Foolproof design to reduce installation error rate.
3)Strong rigidity, oxidation resistance,not easy to deform, smoother splicing.
4)Support hoisting, leasingtruss installation, frame fixed installation.
Product parameter:
| Dimension(MM) | 500*500*85mm/500*1000*85mm |
| Max.Power(w) | 100W/200W |
| Cabinet Weight(KG) | 7.2KG/12KG |
| Brightness(CD/m²) | ≥4500 CD/㎡ |
| LED Standard | SMD2020 |
| Viewing Angle | 120° |
| Protection Level | IP65 |
| Refresh Rate(Hz) | 1920Hz/3840Hz |
| Pixel Pitch(MM) | 2.6/2.98MM |
| Scan Mode | 1/16Scan |
| Pixel Density(Dot/㎡) | 65536 Dot/m² |
| Cabinet Material | Aluminum Alloy |
| Maintenance Method | Front Maintenance |
| Grey Level | 12-16 Bit |
| Working Temperature | -20~60℃ |
| Working Humidity | 10%-90%RH |
| Life Span | ≥50000 Hours |
| Working voltage | AC 110W/220V,50V60HZ |
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CCC, CE, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
Q1.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
Q2. How to install and debug?
Answer: We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q3.What's the warranty?
Answer: 2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q4.What's the minimum quatity?
Answer: Sample is available! Quantity is negotiable!
Q5.How to make order?
Answer: Provide your E-mail address, detail address and phone number, we will make payment link for you!
