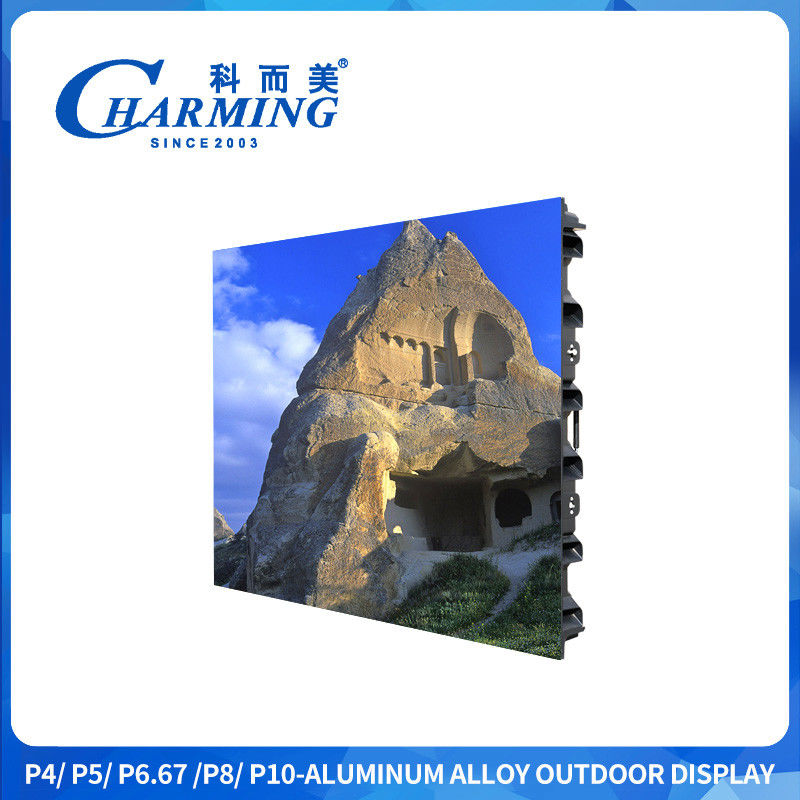

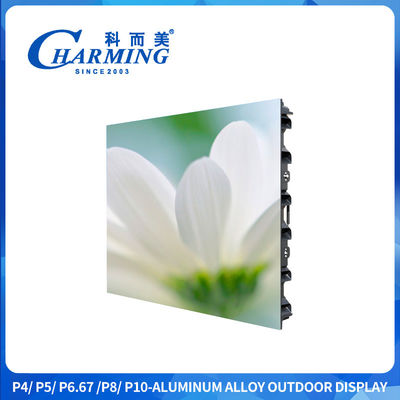

960x960mm Seamless P4 Outdoor LED Advertising Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | P4 Outdoor LED Screen | Size: | 960x960mm |
|---|---|---|---|
| Pixel Pitch: | 4MM | Cabinet Weight: | 28KG |
| Scan Type: | 1/10scan | Brightness: | ≥5000CD/M² |
| IP Rate: | IP65 | Resolution: | 240x240 |
| Refresh Rate: | 1920hz | Life Span: | ≥100000 Hours |
| Highlight: | 960x960mm Outdoor LED Advertising Screen,Seamless Outdoor LED Advertising Screen |
||
Product Description
960x960mm Seamless P4 Outdoor LED Advertising Screen With China Factory Price
Product introduce:
1. Fast Installation And Light Weight
Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows. Have 2 pcs fast lockers on the top and left sides , also support hanging and fixed installation. Nice appearance and simple structures. Jointed correctly, being installed & dismounted by one person without tool.
2. Easy To Maintenance
Humanized operating interface with breakdown indicator lights, easy to maintain. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
3. High Quality Detail
130° super wide viewing angle , deducing the same wonderful effect from different angles.Only 128mm thickness , seamless splicing for a better display .To guarantee the premium visual effect with higher definition , higher contrast , and higher saturation.
Product Details:
1,Magnesium alloy cabinet
2,Strong regidity, no deformation
3,More accurate splicing
4,Ergonomic structural design easy installation by one person.
Product Parameters
|
Type Number |
P5 |
|---|---|
|
Dimension(MM) |
960x960x128MM |
|
Max Power(W) |
12000W |
|
Cabinet Weight(KG) |
28KG |
|
Refresh Rate(Hz) |
1920Hz |
|
Pixel Pitch(MM) |
4MM |
|
Led Standard |
SMD2525 |
|
Pixel Density(Dot/M²) |
62500 Dot/M² |
|
Brightness(CD/M²) |
≥5000CD/M² |
|
Viewing Angle |
130° |
|
IP Rate |
IP65 |
|
Cabinet Material |
Magnesium Alloy |
|
Maintenance |
Back Service |
|
Grey Level |
14-16 bit |
|
Working Temperature |
20~60℃ |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥100000 Hours |
|
Working Voltage |
AC110V/220V |
Installation Details
1.Splicing the box into the required size and shape, aligning the hole with the quick lock to fix the box.
2.Distinguish the power cable and the signal cable, and insert the power cable and the signal cable into the corresponding places of the box.
3.Connect the main signal cable and the main power cable to the computer and the controller, and use it successfully after debugging the screen.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
