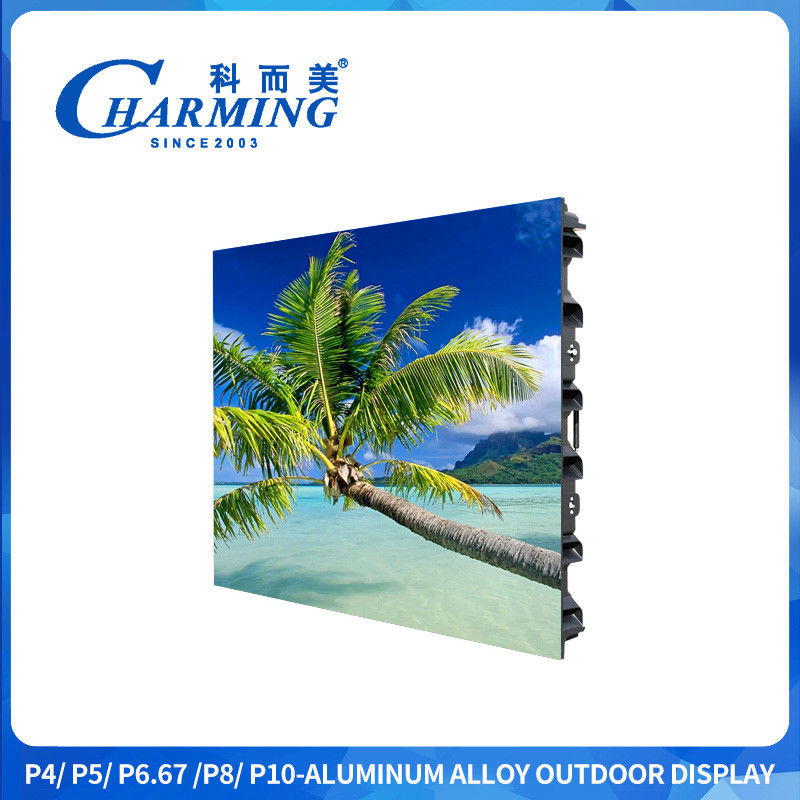

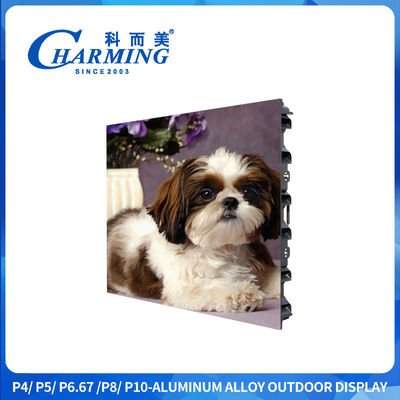

38kg Weight P4 960x960 128mm Thicknesss Outdoor Led Display Screen With Waterproof Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Pixel Pitch: | 4MM | Cabinet Size: | 960x960mm |
|---|---|---|---|
| Led Size: | Smd2525 | Weight: | 28Kg |
| Resolution: | 240x240 | Brightness: | ≥5500Cd/m² |
| Protect Level: | Outdoor IP65 | Refresh Rate: | 1920-3840hz |
| Viewing Angle: | 140° | Maintenance Method: | Back Service |
| Highlight: | P4 Outdoor Led Display Screen,Waterproof Lock Outdoor Led Display Screen,128mm Outdoor Led Display Screen |
||
Product Description
38kg Weight P4 960x960 128mm Thicknesss Outdoor Led Display Screen With Waterproof Lock
Product introduce:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.The final products feature supreme quality and offers best outputs.
4.High refresh rate and gray scale ensures the picture quality remains seamless.
Product Parameters
|
Type Number |
P4 |
|---|---|
|
Dimension(MM) |
960x960x128MM |
|
Max Power(W) |
12000W |
|
Cabinet Weight(KG) |
28KG |
|
Refresh Rate(Hz) |
1920Hz-3840Hz |
|
Pixel Pitch(MM) |
4MM |
|
Led Standard |
SMD2525 |
|
Pixel Density(Dot/M²) |
62500 Dot/M² |
|
Brightness(CD/M²) |
≥5000CD/M² |
|
Viewing Angle |
140° |
|
IP Rate |
IP65 |
|
Cabinet Material |
Aluminum Alloy |
|
Maintenance |
Back Service |
|
Grey Level |
14-16 bit |
|
Working Temperature |
20~60℃ |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥100000 Hours |
|
Working Voltage |
AC110V/220V |
Product Details:
1.Slim and light weight,quick disassembly
2.Die casting aluminum panel
3.High degree of protection,high durability
4.Common good,flexible and easy to use
Company introduce
Charmingled is a Top-End Quality LED Display Manufacturer In China. It is a Hi-tech enterprise, integrating R&D, production, Marketing, technical support and service of LED screen solution in the field of outdoor & indoor application. Focus on High end market with high quality products. Products are enjoying a Hot market in US, Australia etc. Strategic Business Policy: Low Cost Control, High-quality Output.
FAQ
1. Can we make any size of led display?
Nope, according to the led module size and cabinet size, such as rental outdoor led display, the smallest unit size is 500x500mm.
2.How to install led diaplay?
We will provide drawings or teamviewer to help you install.
3.How to orser led display?
Please tell me size ofled display, where will the display be used.
4.How to ship?
Normally, the display will be shipped by air and sea, we suggest you go with by sea, because it's cheaper.
5.How to finnish payment?
You cab transfer payment by TT, West union, recommand Trade Assurance.
