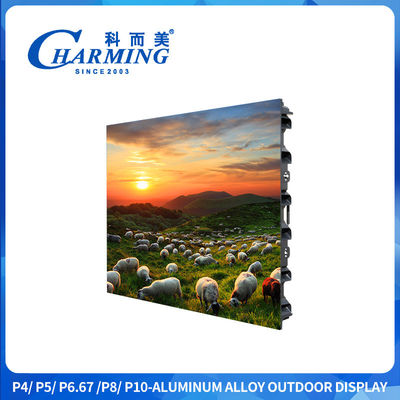

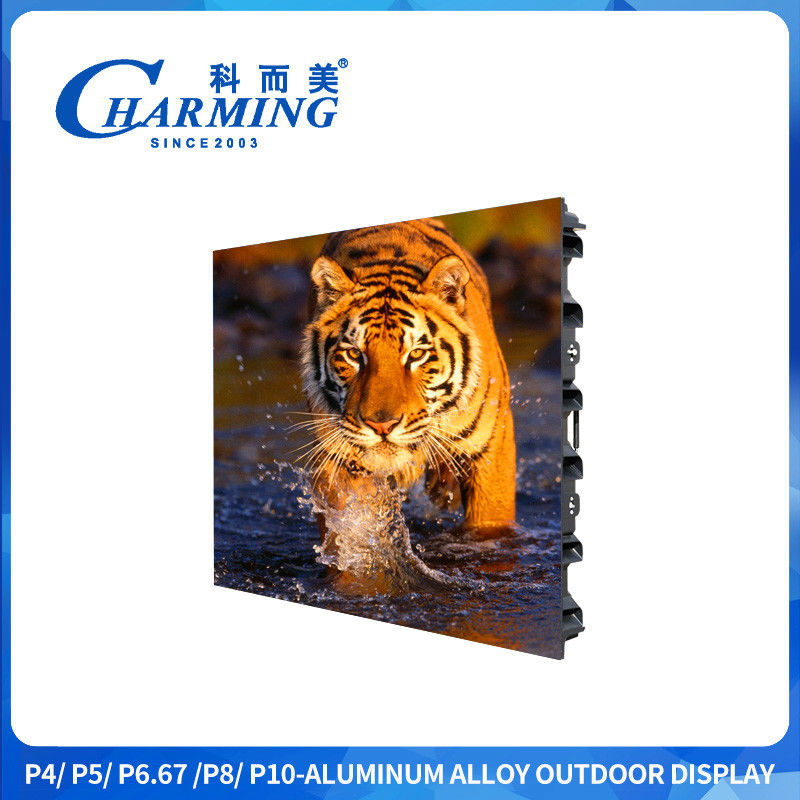

Led Screen Advertising Board P6 Street Mounted 960x960MM Led Screen P4 Video Outdoor Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Led Size: | SMD2525 | Viewing Angle: | 140° |
|---|---|---|---|
| Cabinet Material: | Aluminum Alloy Material | Cabinet Size: | 960x960mm |
| Brightness: | ≥5500cd/m² | Working Temperature: | -30 ~ 60°C |
| Refresh Rate: | 1920-3840HZ | Pixel Density: | 62500Dot/m² |
| Highlight: | P4 Video Outdoor Display,P6 Street Mounted Led Screen,960x960MM Led Screen |
||
Product Description
Led Screen Advertising Board P6 Street Mounted 960x960MM Led Screen P4 Video Outdoor Display
Product introduce:
1.Clear picture without flicker and distortion.No light leakage trouble.
2.High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm.
3.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
4.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements.
Product Details:
1.High refresh rate , low light high gray
2.Magnetic front service or Back service with screw
3.Hard Connection, HUB card design, Without Any Cables
4.High-efficiency cooling, No fan ,mute design, noise-free
Product Parameters
|
Type Number |
P4 |
|---|---|
|
Dimension(MM) |
960x960x128MM |
|
Max Power(W) |
12000W |
|
Cabinet Weight(KG) |
28KG |
|
Refresh Rate(Hz) |
1920Hz-3840Hz |
|
Pixel Pitch(MM) |
4MM |
|
Led Standard |
SMD2525 |
|
Pixel Density(Dot/M²) |
62500 Dot/M² |
|
Brightness(CD/M²) |
≥5500CD/M² |
|
Viewing Angle |
140° |
|
IP Rate |
IP65 |
|
Cabinet Material |
Aluminum Alloy |
|
Maintenance |
Back Service |
|
Grey Level |
14-16 bit |
|
Working Temperature |
20~60℃ |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥100000 Hours |
|
Working Voltage |
AC110V/220V |
Company introduce
Charmingled is a Top-End Quality LED Display Manufacturer In China. It is a Hi-tech enterprise, integrating R&D, production, Marketing, technical support and service of LED screen solution in the field of outdoor & indoor application. Focus on High end market with high quality products. Products are enjoying a Hot market in US, Australia etc. Strategic Business Policy: Low Cost Control, High-quality Output.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
FAQ
1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as rental outdoor led display, the smallest unit size is:500x1000mm.
2,How to install led display?
We will provide drawings or Teamviewer to help you install.
3,How to order LED display?
Please tell me size of led display,where will the display be used.
4,How to ship?
Normally, the display will be shipped by air and sea, we suggest you go with by sea because it is cheaper.
5,How to finish payment?
You can transfer payment by TT,West union, recommand Trade Assurance.
6,How long will it take to delivery the goods?
For led module our delivery date is 1-5days,for led screen order less than 100 square meter we can delviery within 15 working days.
