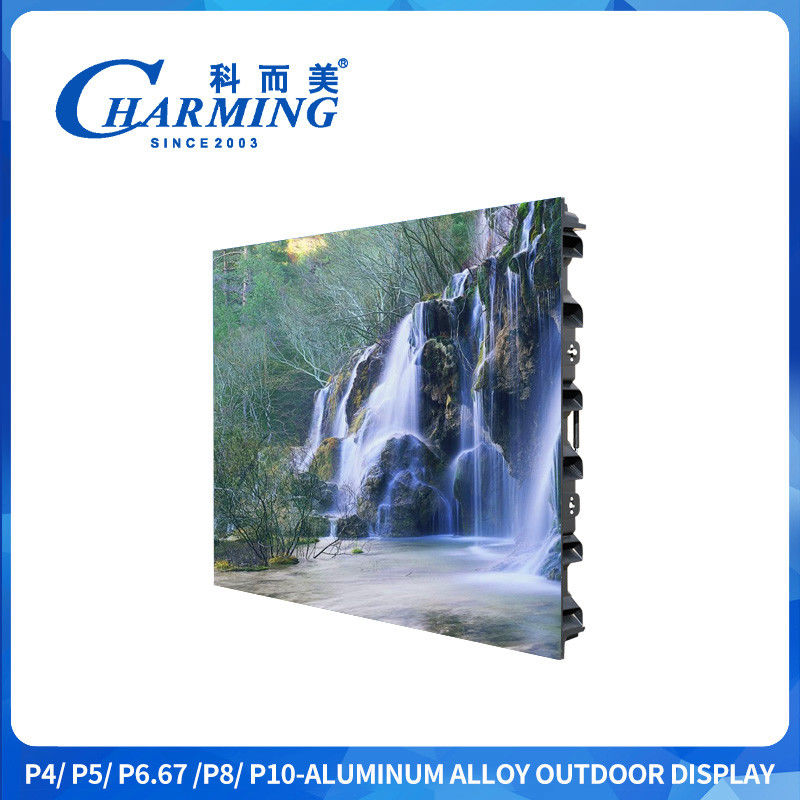

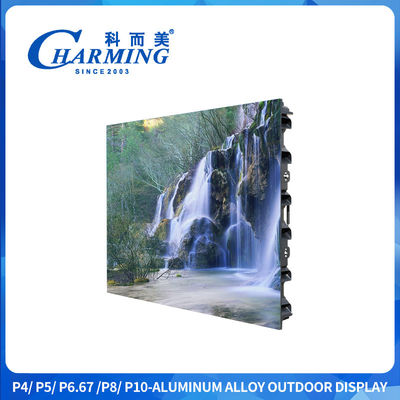

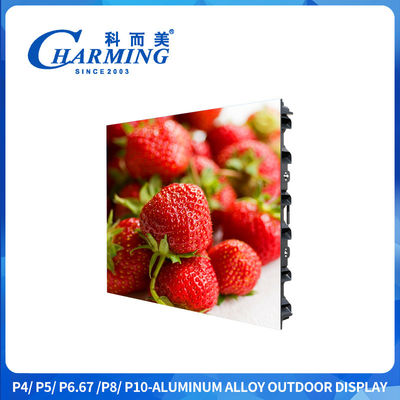

16-Bit High Gray Level Outdoor P4 Led Display Screen Ultra Wide Viewing Angle With Zinc Alloy Quick Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Pixel Pitch: | 4MM | Cabinet Size: | 960x960mm |
|---|---|---|---|
| Led Size: | Smd1921 | Weight: | 38Kg |
| Viewing Angle: | 130° | Resolution: | 240x240 |
| Maintenance Method: | Back Maintenance | Brightness: | ≥5500Cd/m² |
| Protect Level: | IP65 | Refresh Rate: | 1920-3840hz |
| Highlight: | P4 Outdoor Led Display Screen,16-Bit Outdoor Led Display Screen |
||
Product Description
16-Bit High Gray Level Outdoor P4 Led Display Screen Ultra Wide Viewing Angle With Zinc Alloy Quick Lock
Product Details
1.Slim and light weight,quick disassembly
2.Die casting aluminum panel
3.High degree of protection,high durability
4.Common good,flexible and easy to use
Product Parameters
|
Type Number |
P4 |
|---|---|
|
Dimension(MM) |
960x960x128MM |
|
Max Power(W) |
12000W |
|
Cabinet Weight(KG) |
38KG |
|
Refresh Rate(Hz) |
1920Hz-3840Hz |
|
Pixel Pitch(MM) |
4MM |
|
Led Standard |
SMD1921 |
|
Pixel Density(Dot/M²) |
62500 Dot/M² |
|
Brightness(CD/M²) |
≥5000CD/M² |
|
Viewing Angle |
130° |
|
IP Rate |
IP65 |
|
Cabinet Material |
Aluminum Alloy |
|
Maintenance |
Back maintenance |
|
Grey Level |
14-16 bit |
|
Working Temperature |
-30~40℃(The maximum temperature of a cooling system can reach 50℃) |
|
Working Humidity |
10%~90%RH |
|
Life Span |
≥100000 Hours |
|
Working Voltage |
AC110V/220V |
Product introduce
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.The final products feature supreme quality and offers best outputs.
4.High refresh rate and gray scale ensures the picture quality remains seamless.
Company introduce
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 20 years.
What we can offer to our customer?
1. Indoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led TV Solution
- Video Conference System
- Immersive & 3D Led Display Solution
2. Outdoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led Advertising Sign
- All-in-one Commercial Led Display System
- Led Billboard Solution
3. Structure Design
- Wall Mounting Structure
- Rental Stack & Floor Stand Structure
- Electric Lifting & Rotating System
4. Customized Led Solution
- Spherical Led Screen Solution
- Cubic Led Screen Solution
- Right angle Led Screen Solution
- Led Video Floor Screen Solution
- Customzed Shape Led Screen Solution
FAQ
1. Can we make any size of led display?
Nope, according to the led module size and cabinet size, such as rental outdoor led display, the smallest unit size is 500x500mm.
2.How to install led diaplay?
We will provide drawings or teamviewer to help you install.
3.How to orser led display?
Please tell me size ofled display, where will the display be used.
4.How to ship?
Normally, the display will be shipped by air and sea, we suggest you go with by sea, because it's cheaper.
5.How to finnish payment?
You cab transfer payment by TT, West union, recommand Trade Assurance.
