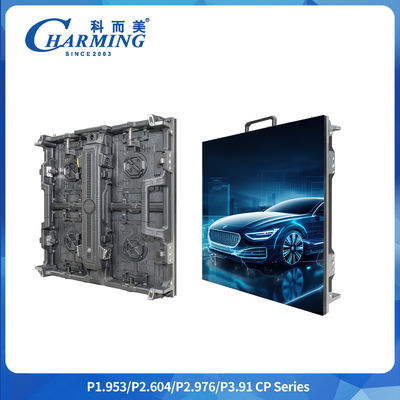

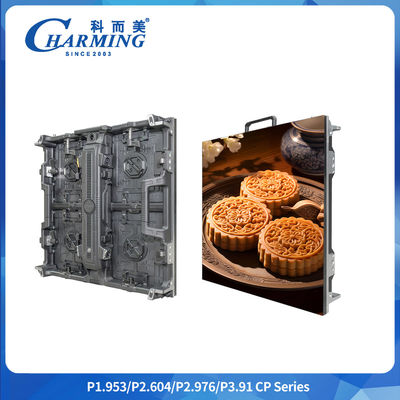

RGB Full colour P2.6/2.98/3.91 CP Series Outdoor Lightweight 7KG LED Video Wall With Stainless steel quick lock
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Rental Indoor& Outdoor Screen | Pixel Pitch: | 2.6-3.91mm |
|---|---|---|---|
| LED Size: | SMD2020 | Pixel Density: | 65536Dot/m² |
| View Angle: | Horizontal: 140°, Vertical: 120 | Refresh Frequency: | 7680Hz |
| Screen Brightness: | ≥4500 CD/㎡ | Cabinet Size: | 500*500mm/500*1000mm |
| IP Grade: | IP65 | ||
| Highlight: | 7KG Outdoor LED Video Wall,7KG LED Video Wall |
||
Product Description
RGB Full colour P2.6/2.98/3.91 CP Series Outdoor Lightweight 7KG LED Video Wall With Stainless steel quick lock
Brief Introduction
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm box weight is only 7 kg.500*1000mm box weight is only 11.4 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shape,The CP series flexible modelsupports splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15% | ||
Details showing:
Want to know Charmingled?
Charming LED is a leading manufacturer of digital signs & billboards with over 20 years of experience in the industry. If you are looking for a Digital LED sign or billboard, Charming LED Displays has the knowledge and expertise to help you make the best decision for your business. Stand out from competitors with our vibrant and attractive LED products and electronic sign solutions.
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.The final products feature supreme quality and offers best outputs.
4.High refresh rate and gray scale ensures the picture quality remains seamless.
5. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation.
