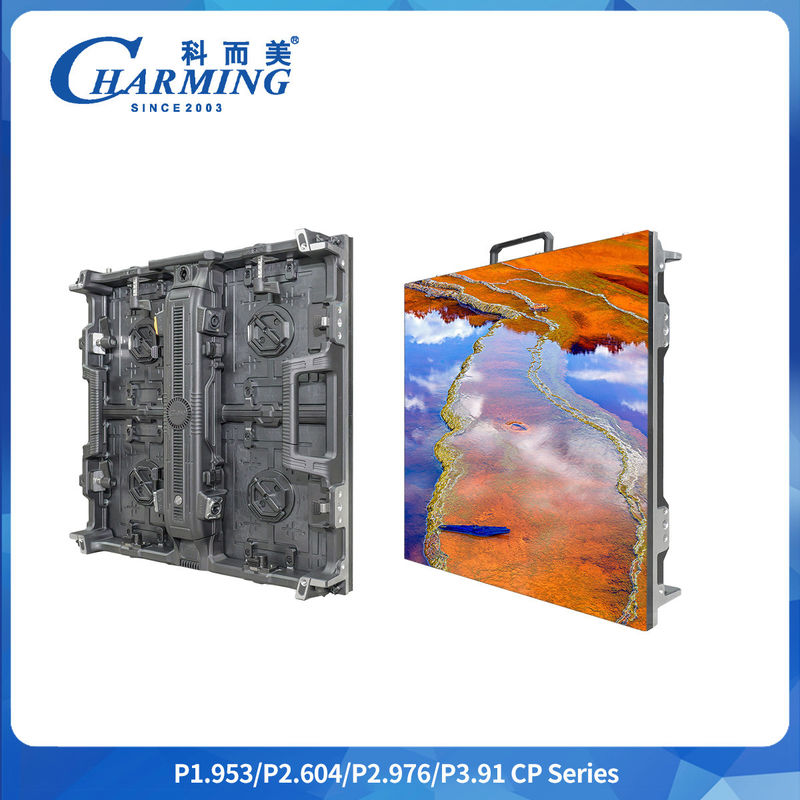

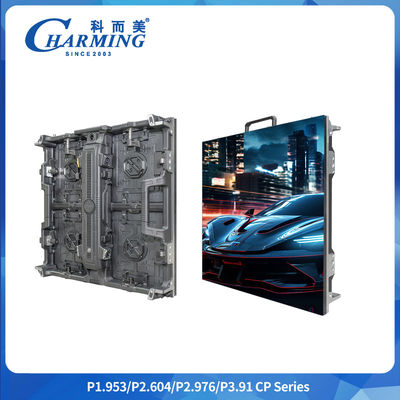

Detachable Module And Power Control Box P2.6/2.98/3.91 CP Series Outdoor LED Video Wall Can Be Opened With A Twist
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Rental Screen | Pixel Pitch: | 2.604,2.976,3.91mm |
|---|---|---|---|
| IP Grade: | IP65 | Pixel Density: | 65536Dot/m² |
| View Angle: | 140°, 120 | Screen Brightness: | ≥5000 CD/㎡ |
| Cabinet Size: | 500*500mm/500*1000mm | Refresh Frequency: | 7680Hz |
| LED Size: | SMD2020 | ||
| Highlight: | P2.6 Outdoor LED Video Wall |
||
Product Description
Detachable Module And Power Control Box P2.6/2.98/3.91 CP Series Outdoor LED Video Wall Can Be Opened With A Twist
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm box weight is only 7 kg.500*1000mm box weight is only 11.4 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shape,The CP series flexible modelsupports splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15% | ||
Details showing:
Want to know Charmingled?
1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as rental outdoor led display, the smallest unit size is:500x1000mm.
2,How to install led display?
We will provide drawings or Teamviewer to help you install.
3,How to order LED display?
Please tell me size of led display,where will the display be used.
4,How to ship?
Normally, the display will be shipped by air and sea, we suggest you go with by sea because it is cheaper.
5,How to finish payment?
You can transfer payment by TT,West union, recommand Trade Assurance.
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
