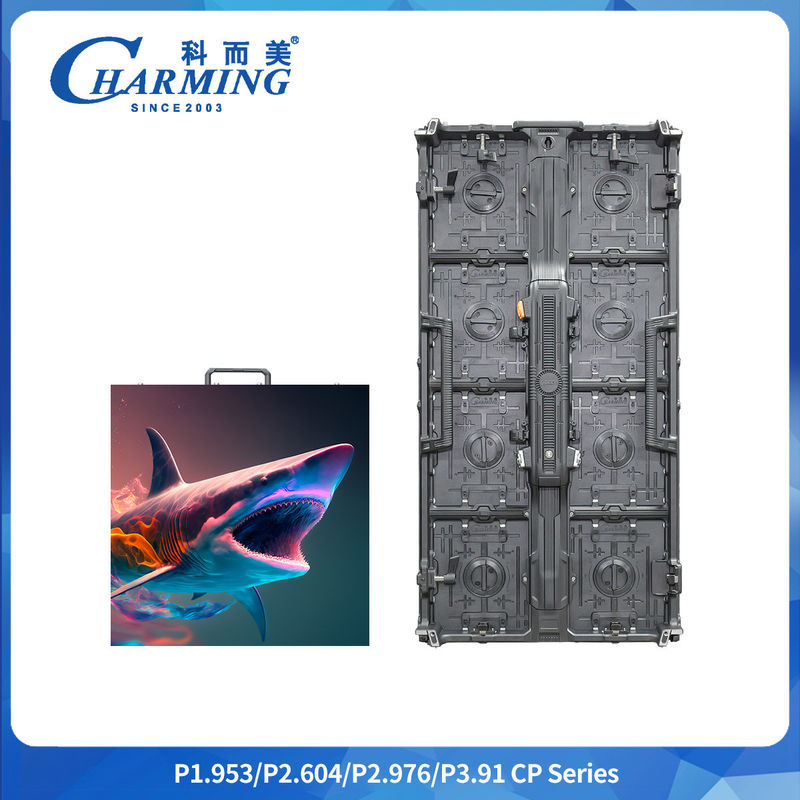

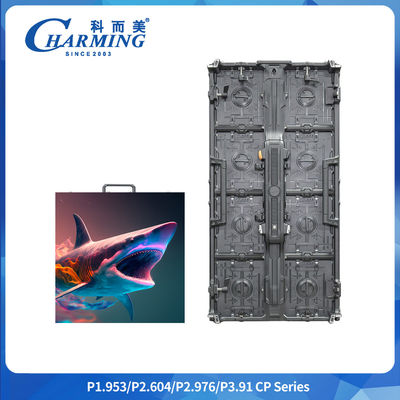

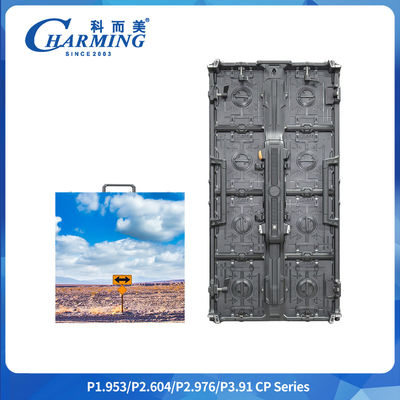

Aluminum Alloy Box P2.6/2.98/3.91 CP Series Outdoor LED Video Wall With Spring Ball Positioning
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Rental Screen | Pixel Density: | 65536Dot/m² |
|---|---|---|---|
| Cabinet Size: | 500*500mm/500*1000mm | IP Grade: | IP65 |
| LED Size: | SMD2020 | Screen Brightness: | ≥5000 CD/㎡ |
| Pixel Pitch: | 2.6,2.98,3.91mm | View Angle: | 140°, 120 |
| Refresh Frequency: | 7680Hz | ||
| Highlight: | 7680Hz Outdoor LED Video Wall,Aluminum Alloy Outdoor LED Video Wall |
||
Product Description
Aluminum Alloy Box P2.6/2.98/3.91 CP Series Outdoor LED Video Wall With Spring Ball Positioning
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm box weight is only 7 kg.500*1000mm box weight is only 11.4 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shape,The CP series flexible modelsupports splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Details showing:
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15% | ||
Technology Training:
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
Want to know Charmingled?
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
We have provided quality products and services to customers in more than 150 countries and regions for 21 years.
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
