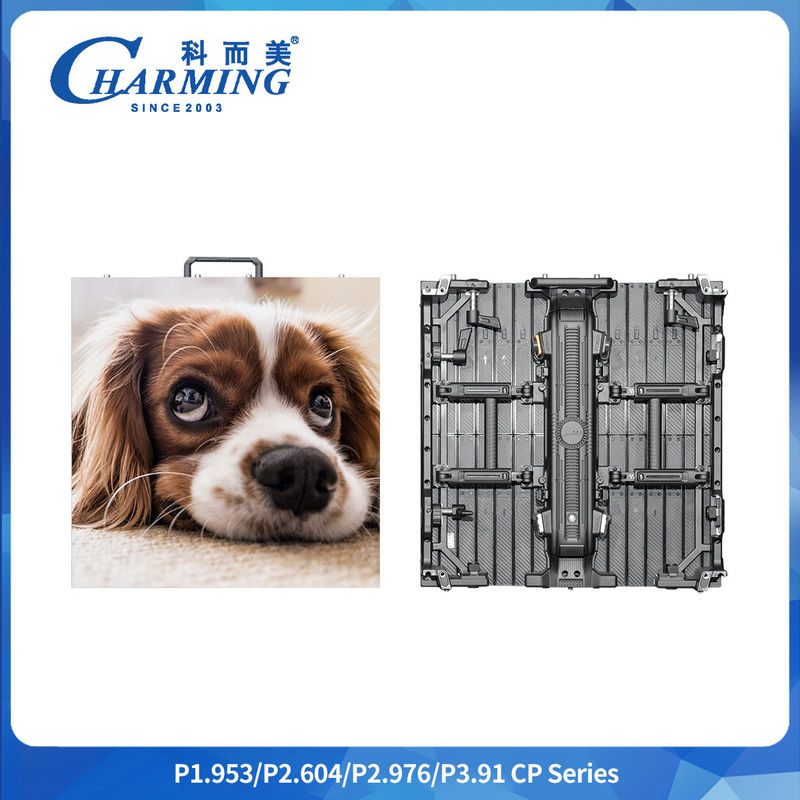

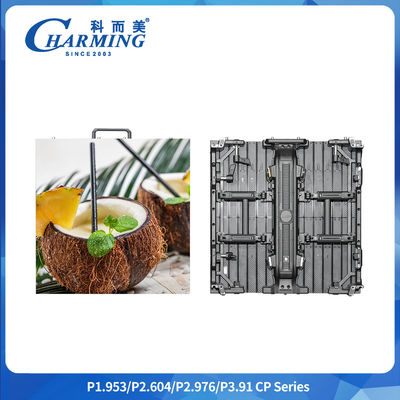

Anti-Oxidation P2.6/2.98/3.91 CP Series Indoor LED Video Wall With Truss Connection Keyhole
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Indoor Screen | LED Size: | SMD2020,1515 |
|---|---|---|---|
| IP Grade: | IP42 | Screen Brightness: | 600-800 CD/㎡ |
| Cabinet Size: | 500*500mm/1000mm | Pixel Density: | 147456,112896,65536Dot/m² |
| Pixel Pitch: | 2.6/2.98/3.91mm | Refresh Frequency: | 7680Hz |
| View Angle: | 140°, 120 | ||
| Highlight: | Anti-Oxidation Indoor LED Video Wall,CP Series Indoor LED Video Wall,Truss connection Indoor LED Video Wall |
||
Product Description
Anti-Oxidation P2.6/2.98/3.91 CP Series Indoor LED Video Wall With Truss Connection Keyhole
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm flexible corner screen weighs only 6.7 kg, 500*500mm box weight is only 6.6 kg,500*1000mm box weight is only 10.8 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shapes,the CP series flexible modelsupports splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15 | ||
Details showing:
led display
1. Die-casting aluminum , low temp-rise
2.Hard Connection, HUB card design, Without Any Cables
3. Magnetic front service or Back service with screw
4.High-efficiency cooling, No fan ,mute design, noise-free.
5. High refresh rate , low light high gray
6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
7. Lightweight - weighs only 8.6kg, single person can be a single portable, and extremely easy to install;
8. Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements;
