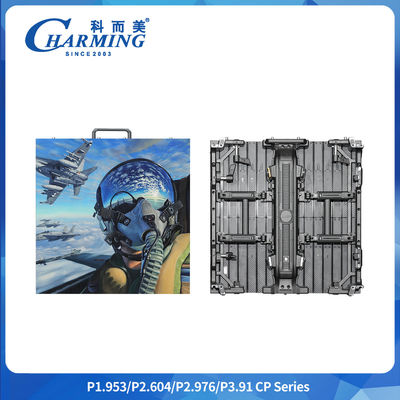

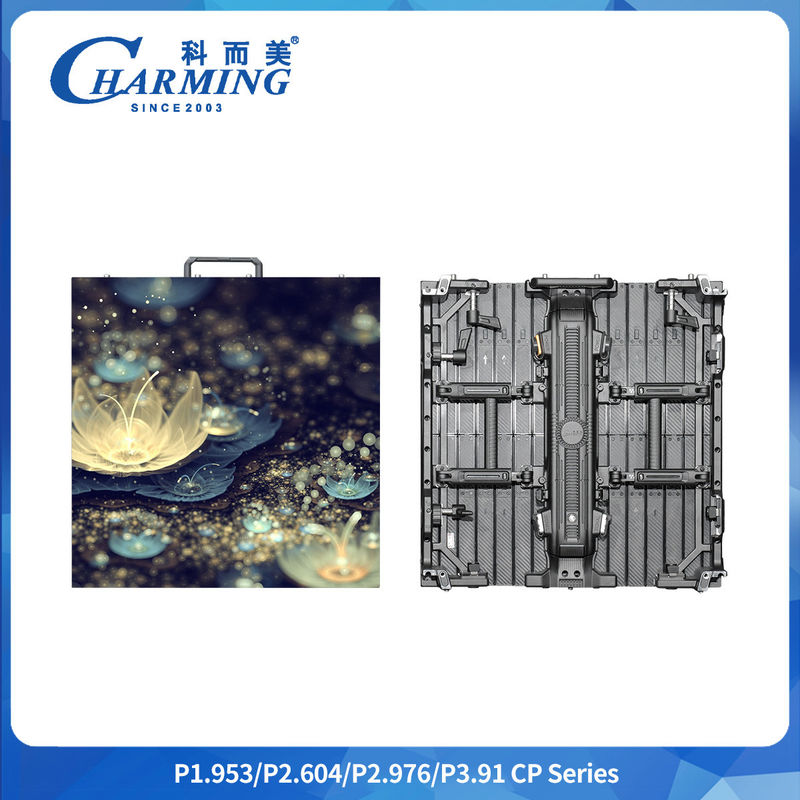

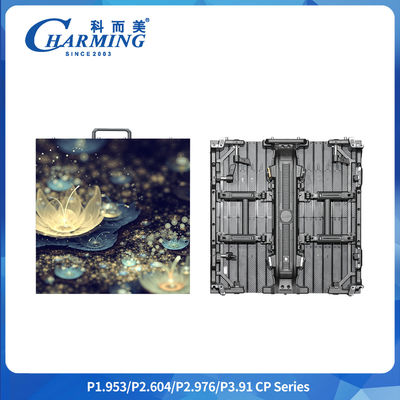

Variable Shapes P2.6/2.98/3.91 CP Series 14-16bit Indoor LED Video Wall With Dual Backup Network Ports
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Indoor Screen | LED Size: | SMD2020,1515 |
|---|---|---|---|
| IP Grade: | IP42 | Screen Brightness: | 600-800 CD/㎡ |
| Cabinet Size: | 500*500mm/1000mm | Pixel Density: | 147456,112896,65536Dot/m² |
| Pixel Pitch: | 2.6/2.98/3.91mm | Refresh Frequency: | 7680Hz |
| View Angle: | 140°, 120 | ||
| Highlight: | Dual Ports Indoor LED Video Wall,16bit Indoor LED Video Wall |
||
Product Description
Variable Shapes P2.6/2.98/3.91 CP Series 14-16bit Indoor LED Video Wall With Dual Backup Network Ports
1.Ultrathin, thickness is only 84mm.
2.light weight, 500*500mm flexible corner screen weighs only 6.7 kg, 500*500mm box weight is only 6.6 kg,500*1000mm box weight is only 10.8 kg
3.Full series splicing.
4.Perfect curve,The arc can be easily adjusted by ±22.5° to achieve a perfect arc.
5.Any shapes,the CP series flexible modelsupports splicing with regularmodels to meet variousstyling needs.
6.Front and rear maintenance.
Details showing:
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15 | ||
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 21 years.
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
