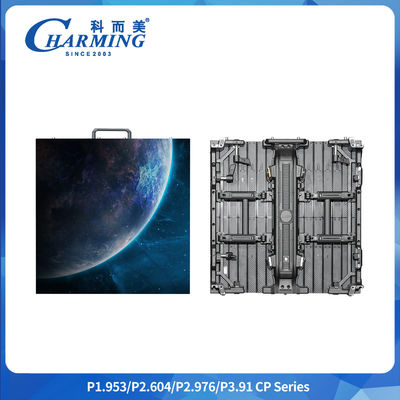

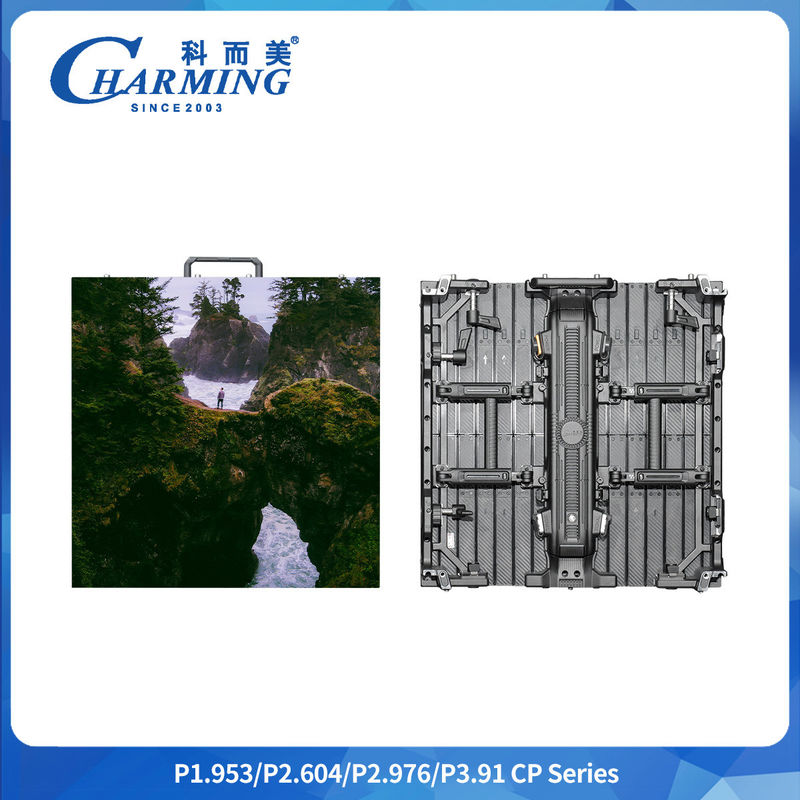

Cabinet Size 500x500/500x1000mm P2.6/2.98/3.91 CP Series Indoor LED Video Wall With Arc Adjuster Maximum Angle 22.5°
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | BIS, CB,CE, EMC,LVD, ROHS, UL |
| Model Number: | P2.6-3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Product Name: | CP Series Indoor Screen | View Angle: | 120° |
|---|---|---|---|
| Pixel Pitch: | 2.6/2.98/3.91mm | Refresh Frequency: | 7680Hz |
| Cabinet Size: | 500*500mm/1000mm | LED Size: | SMD1515 |
| Pixel Density: | 147456,112896,65536Dot/m² | Screen Brightness: | 600-800 CD/㎡ |
| IP Grade: | IP43 | ||
| Highlight: | P3.91 Indoor LED Video Wall,IP43 Indoor LED Video Wall |
||
Product Description
Cabinet Size 500x500/500x1000mm P2.6/2.98/3.91 CP Series Indoor LED Video Wall With Arc Adjuster Maximum Angle 22.5°
1.Ultrathin.
2.light weight.
3.Full series splicing.
4.Perfect curve
5.Any shapes.
6.Front and rear maintenance.
Product Specifications:
| Type Number | flexible screen | regular screen | curved screen |
|---|---|---|---|
| Pixel Pitch | 2.6/2.98/3.91mm | ||
| Pixel Density | 262144/
147456
Dot/m |
||
| LED Size | SMD1515/2020 | ||
| scan Type | 1/32 Scan | ||
| GreyScale | 14-16 bit | ||
| Refresh Frequency | 7680Hz | ||
| Screen Brightness | ≥4500 CD/㎡ | ||
| Best Viewing Distance | ≥4M | ||
| View Angle | ≥120° | ||
| MaxPower | 200w | ||
| Cabinet Weight | 7kg | 7kg | 11.4kg |
| IP Grade | IP65 | ||
| Operation temperature | -20~50℃ | ||
| Relative humidity | 10%~90%RH | ||
| Life Span | 250,000 Hours | ||
| Screen Working Voltage | AC 220V/(110V)+15 | ||
