New Invention P2.5 Videos 320x160mm Indoor Led Display Indoor Led Advertising Screen Panel With High Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Module Size: | 320x160mm | IP Grade: | IP50 INDOOR |
|---|---|---|---|
| Pixel Density: | 160000DOT/m² | Viewing Angle: | 120° |
| LED Standard: | SMD2020 Standard | Refresh Rate(Hz): | 3840HZ/1920HZ |
| Scan Type: | 1/32 Scan | Brightness: | 600-800cd/m² |
| Operation Temperature: | -20~50℃ | ||
| Highlight: | High Performance Indoor Led Display,320x160mm Indoor Led Display,P2.5 Indoor Led Display |
||
Product Description

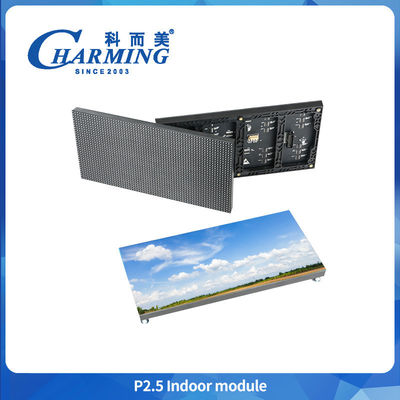

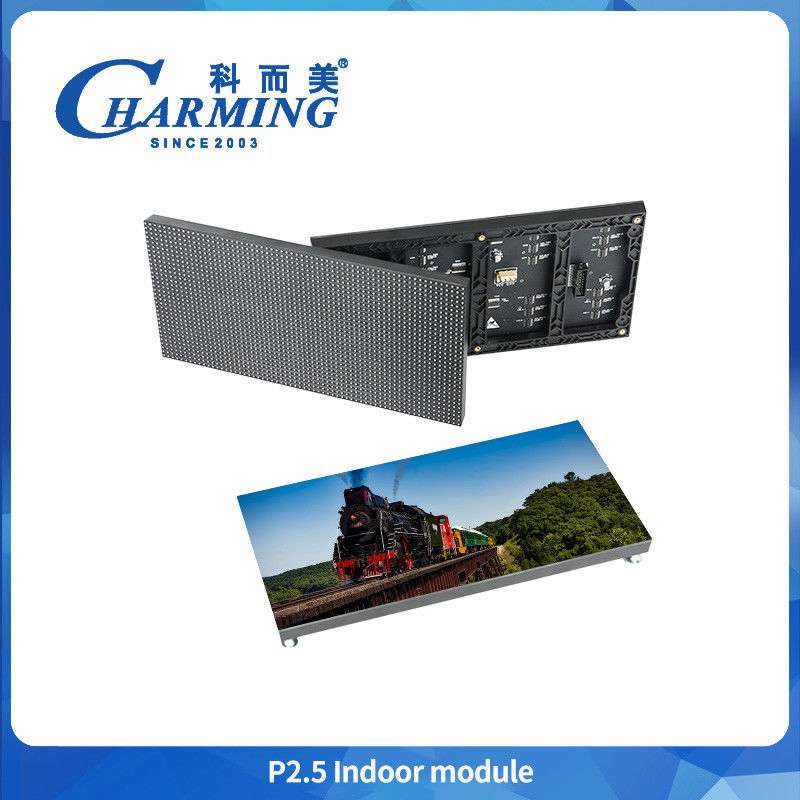

New Invention P2.5 Videos 320x160mm Indoor Led Display Indoor Led Advertising Screen Panel With High Performance
Product introduce:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor requirements;
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.High refresh rate , low light high gray
3.WIFI contrl,common good,flexible and easy to use
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
FAQ
1.How long will it take to delivery the goods?
-For led module our delivery date is 1-5days,for led screen order less than 100 square meter we can delviery within 15 working days.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Paypal, or other is ok .This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training And Documents and Certification
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on.
Company introduce
CharmingLED display is Top-End Quality LED Display Manufacturer In China. It is a Hi-tech enterprise, integrating R&D, production, Marketing, technical support and service of LED screen solution in the field of outdoor & indoor application. Focus on High end market with high quality products. Products are enjoying a Hot market in US, Australia etc. Strategic Business Policy: Low Cost Control, High-quality Output.
CAD Drawing and Fixing
We provide CAD drawing on how to fix up the display for free and some other expert suggestion
