800 CD/m² Charming HD P2.5 Indoor Led Modules Large Full Color 16bit P2 P3 P4 P5 Indoor Video Advertising Board
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Refresh Rate(Hz): | 3840HZ/1920HZ | Pixel Density: | 160000Dot/m² |
|---|---|---|---|
| Brightness: | 600-800cd/m² | Working Voltage: | DC 5V |
| IP Grade: | IP50 Indoor | Life Span: | >50000 Hours |
| Grey Level: | 16 Bit | Working Temperature: | -20 ~ 50°C |
| Working Humidity: | 10%～90%RH | LED Standard: | SMD2020 |
| Highlight: | 16bit Indoor Led Modules,Large Full Color Indoor Led Modules,P2.5 Indoor Led Modules |
||
Product Description

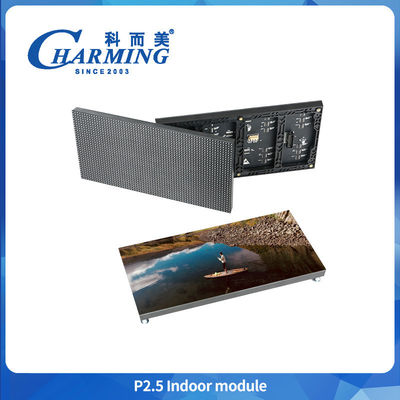

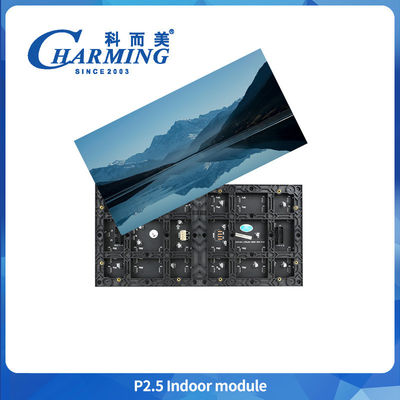

800 CD/m² Charming HD P2.5 Indoor Led Modules Large Full Color 16bit P2 P3 P4 P5 Indoor Video Advertising Board
Product introduce:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor requirements;
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.High refresh rate , low light high gray
3.Cell Phone & Wifi contrl,common good,flexible and easy to use
4.Clear picture without flicker and distortion.No light leakage trouble
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Company introduce
CharmingLED display is Top-End Quality LED Display Manufacturer In China. It is a Hi-tech enterprise, integrating R&D, production, Marketing, technical support and service of LED screen solution in the field of outdoor & indoor application. Focus on High end market with high quality products. Products are enjoying a Hot market in US, Australia etc. Strategic Business Policy: Low Cost Control, High-quality Output. We have provided quality products and services to customers in more than 150 countries and regions for 21 years.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
FQA
1.Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
3. How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5.What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU..
Fastest Delivery and Best Online Services
Charming LED tech provides best online services to the customers.We are always ready to assist you when you need us. Also we take good care of the safety of the products. We work with the leading logistics who ensure fastest and safest delivery of your products.
Technology Training And Documents and Certification
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on.
