High Definition P1.9-3.91 7680hz Refresh Rate Cp Series 500*500/1000mm Staggered Splicing Rental Curved Regula Outdoor And Indoor Flexible Led Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Pixel Pitch: | 2.6-3.91MM | Cabinet Material: | Aluminum Alloy |
|---|---|---|---|
| Cabinet Size: | 500*500MM/500*1000MM | Protective Level: | IP65 |
| Refresh Rate: | 7680HZ | Scan Type: | 1/16Scans |
| Screen Brightness: | ≥4500CD/m² | Viewing Angle: | 140°/120° |
| Cabinet Weight: | 7KG/11.4KG | Led Size: | SMD1921 |
| Pixel Density: | 62500DOT/m² | ||
| Highlight: | Outdoor Flexible Led Video Wall,Indoor Flexible Led Video Wall |
||
Product Description

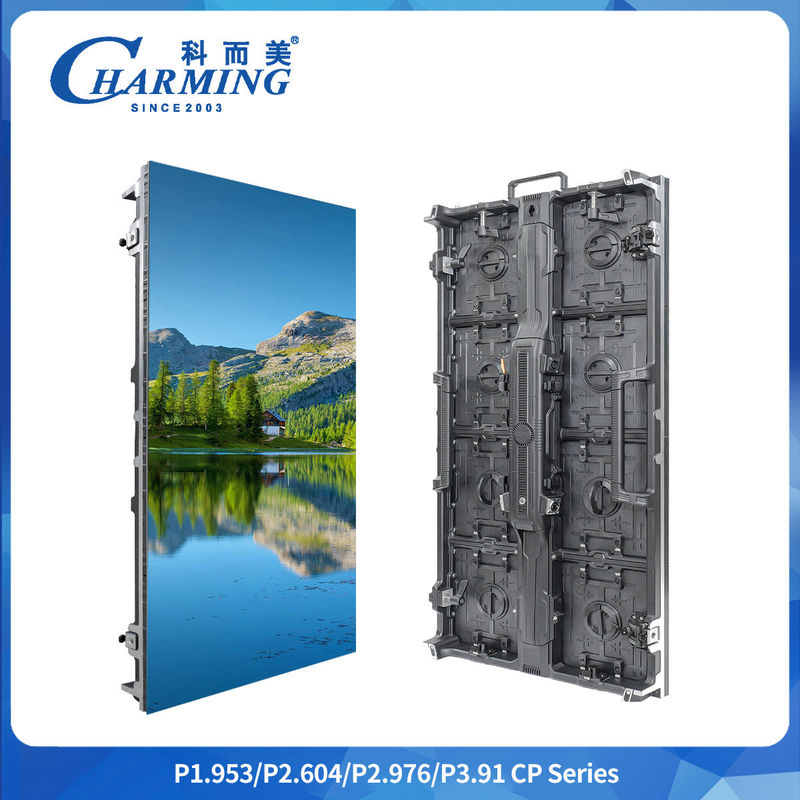

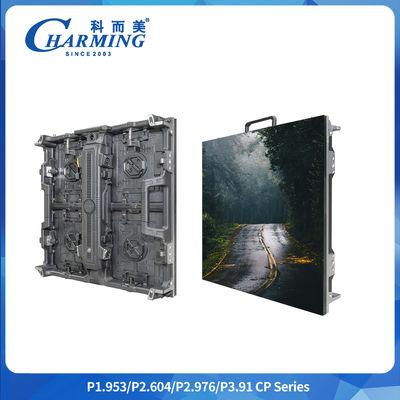

High-Definition P1.9-3.91 7680hz Refresh Rate Cp Series 500*500/1000mm Staggered Splicing Rental Curved Regula Outdoor And Indoor Flexible Led Video Wall
Product introduce:
1. 500x500 and 500x1000 boxes can be assembled vertically and horizontally.
2.Aluminumalloy box:strong rigidity, good heatdissipation, anti-oxidation,not easy to deform, andsmoother splicing.
3. 36 boxes can be assembled into a cylinder witha minimum diameter of 5.8 meters.
4.Ultra-thinThe thickness is only 84mm.
5.The maximum arc of the inner and outer arcsof the arc box is 10 degrees.
Product Details:
seamless splicing, improving installation efficiency.
Product Parameters:
|
Cabinet Type |
Flexible | Curved |
Ruglar |
|---|---|---|---|
|
Dimension(MM) |
500x500x84mm | 500x500x84mm |
500x1000x84mm |
|
Max Power(W) |
200W | 200W |
400W |
|
Cabinet Weight(KG) |
7KG | 7KG |
11.4KG |
|
Refresh Rate(Hz) |
7680Hz | 7680Hz |
7680Hz |
|
Pixel Pitch(MM) |
2.6/2.976/3.91mm | ||
|
Pixel Density(Dot/M²) |
65536 Dot/M² |
||
|
Led Standard |
SMD1921 |
||
|
Brightness(CD/M²) |
≥4500CD/M² |
||
|
IP Rate |
IP65 |
||
|
View Angle |
120°/140° |
||
|
Cabinet Material |
Aluminum Alloy |
||
|
Maintenance |
Front Service |
||
|
Grey Level |
14-16 bit |
||
|
Life Span |
≥50000 Hours |
||
|
Working Humidity |
10%~90%RH |
||
|
Working Temperature |
20~60℃ |
||
|
Working Voltage |
AC110V/220V | ||
What we offer to customer?
Q1.How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with
your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q2.What's the minimum quatity?
Sample is available! Quantity is negotiable!
Q3.What is your payment term?
T/T, Paypal, or other is ok .This is negotiable.
Q4.How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
Company introduce
Charming LED is a leading manufacturer of digital signs & billboards with over 20 years of experience in the industry. If you are looking for a Digital LED sign or billboard, Charming LED Displays has the knowledge and expertise to help you make the best decision for your business.We only make high-quality productsWe work with large and established parts suppliers. We guarantee the production of illuminated advertising signs and video screens at affordable prices and with extended warranties.
