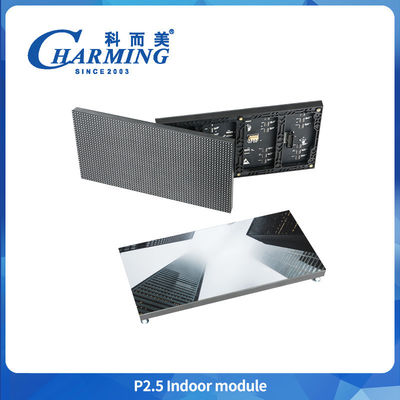

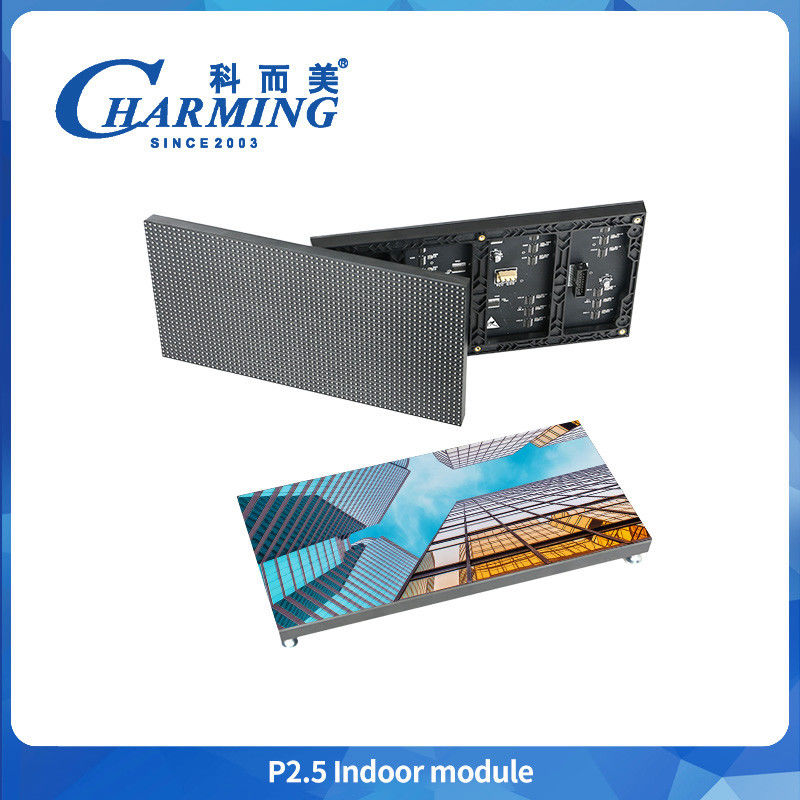

China Factory IP50 SMD2020 Led Display Screen Module 3840Hz Indoor Led Module P2.5 High Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| IP Grade: | IP 50 | Viewing Angle: | 120 |
|---|---|---|---|
| LED Standard: | Smd 2020 Standard | Brightness: | 600-800cd/m² |
| Module Size: | 320x160MM | Grey Level: | 16 Bit |
| Working Temperature: | -20 ~ 50°C | Pixel Density(Dot/㎡ ): | 160000 Dot/m² |
| Module Max.Power（W）: | 24W | Refresh Rate（Hz）: | 3840Hz / 1920Hz |
| Highlight: | IP50 Indoor Led Display Screen Module,3840Hz Indoor Led Display Screen Module,P2.5 Indoor Led Display Screen Module |
||
Product Description
China Factory IP50 SMD2020 Led Display Screen Module 3840Hz Indoor Led Module P2.5 With High Performance
Product introduce:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble
3.Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.High refresh rate , low light high gray
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
