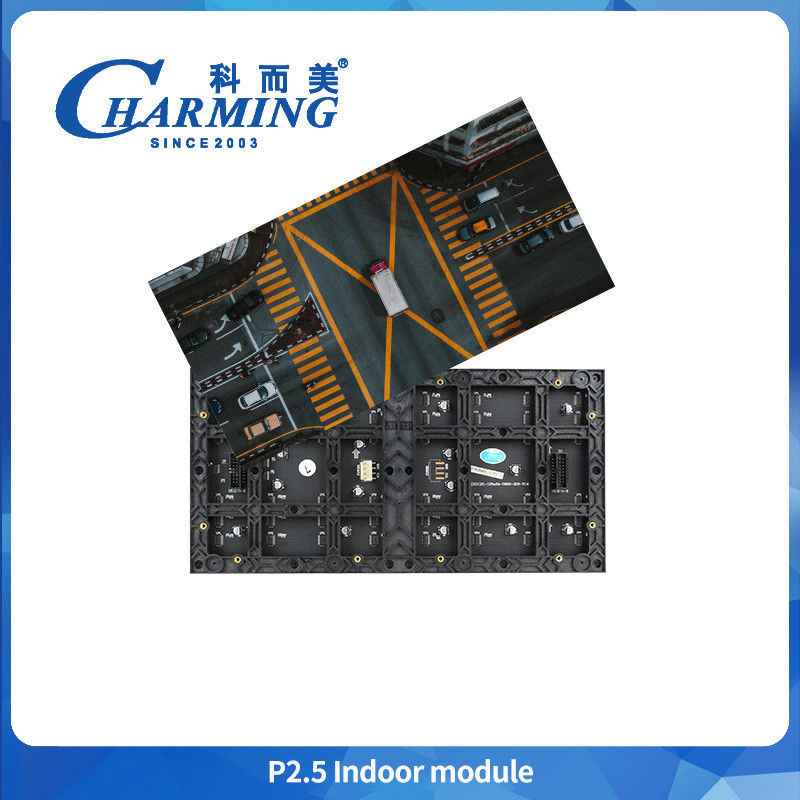

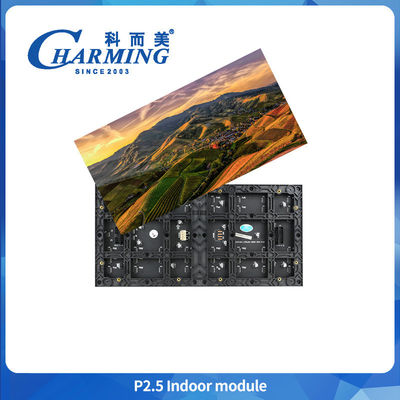

320x160MM P2 P2.5 Videos Led Module 24W SMD2020 Indoor Led Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Module Size: | 320x160mm | Pixel Density: | 160000DOT/m² |
|---|---|---|---|
| LED Standard: | SMD2020 Standard | Refresh Rate(Hz): | 3840HZ/1920HZ |
| Brightness: | 600-800cd/m² | Scan Mode: | 1/32Scan |
| Protection Level: | IP50 | Module Max.Power（W）: | 24W |
| Grey Level: | 16 | ||
| Highlight: | 24W Indoor Led Wall,P2.5 Videos Indoor Led Wall,320x160MM Indoor Led Wall |
||
Product Description
320x160MM P2 Videos P2.5 Videos Led Module 24W SMD2020 Indoor Led Wall With High Quality And Good Price
Product introduce:
1.Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor requirements;
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.High refresh rate and gray scale ensures the picture quality remains seamless
3.WIFI contrl,common good,flexible and easy to use
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Company Introduction
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED. In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led. It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications. Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 21 years.
Technology Training And Documents and Certification
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on.
Fastest Delivery and Best Online Services
Charming LED tech provides best online services to the customers.We are always ready to assist you when you need us. Also we take good care of the safety of the products. We work with the leading logistics who ensure fastest and safest delivery of your products.
