P5 P4 P3 P2.5 P2 Magnetic Led Module IP50 Indoor Smd Full Color Waterproof Led Video Wall Panel 24W Led Advertising Screen Display For Entertainment Venues
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Viewing Angle: | 120° | Brightness: | 600-800CD/m² |
|---|---|---|---|
| Module Size: | 320x160MM | Working Temperature: | -20 ~ 50°C |
| Pixel Density(Dot/㎡ ): | 160000 Dot/m² | Refresh Rate（Hz）: | 3840Hz / 1920Hz |
| IP Grade: | IP50 Indoor | LED Standard: | Smd 2020 Standard |
| Grey Level: | 16 Bit | Module Max.Power（W）: | 24W |
| Highlight: | Waterproof Led Video Wall Panel,Full Color Led Video Wall Panel |
||
Product Description

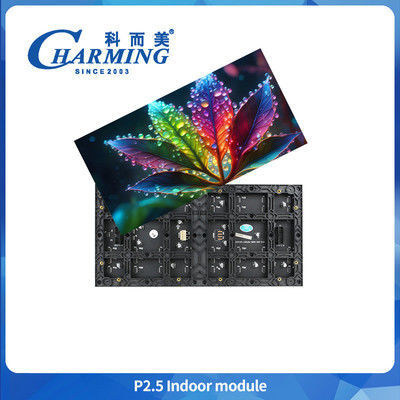

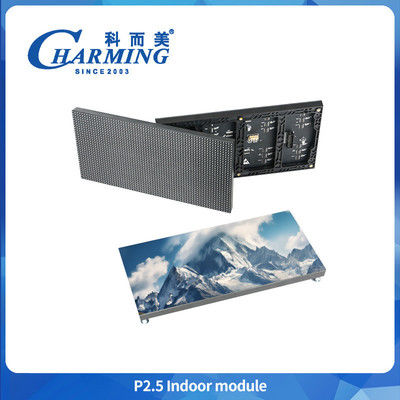

P5 P4 P3 P2.5 P2 Magnetic Led Module IP50 Indoor Smd Full Color Waterproof Led Video Wall Panel 24W Led Advertising Screen Display for Entertainment Venues
Product introduce
1.Magnetic front maintenance, easy and quick installation.
2.High refresh rate, low power consumption, high definition and smooth video.
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements.
Product Details
1.Precision welding fine standards.
2.140° wide viewing angle, immersive restoration experience, enjoy a visual feast at any time.
3.Lightweight design, quiet and efficient cooling.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Professional Manufacturer of led display
1.Excellent R&D team,factory Price and assure you quality goods.
2.Remote controlling and adjusting are available.
3. OEM service,No MOQ.
4. Offering free design drawing as requested.
5.Your reply will be replied within 24 hours.
6. Fast delivery: Usually 6-8 working days.
7. Wooden case or flight case,you are the boss.
8. Easy installation,regular items in Stocks.
Project Cases
Company Introduction
CHARMING-LED is a confident LED screen supplier in the Chinese entertainment display market with over 20 years of experience in implementing various projects. As a trusted LED equipment manufacturer, we offer a high level of product quality and adhere to a flexible and appropriate pricing policy.We only make high quality products and we work with large and established component suppliers. We guarantee the production of illuminated advertising signs and video screens at affordable prices and with extended warranties.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
What we offer to customer?
Q1.Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
Q3.What's the warranty?
2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q4.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5.How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
