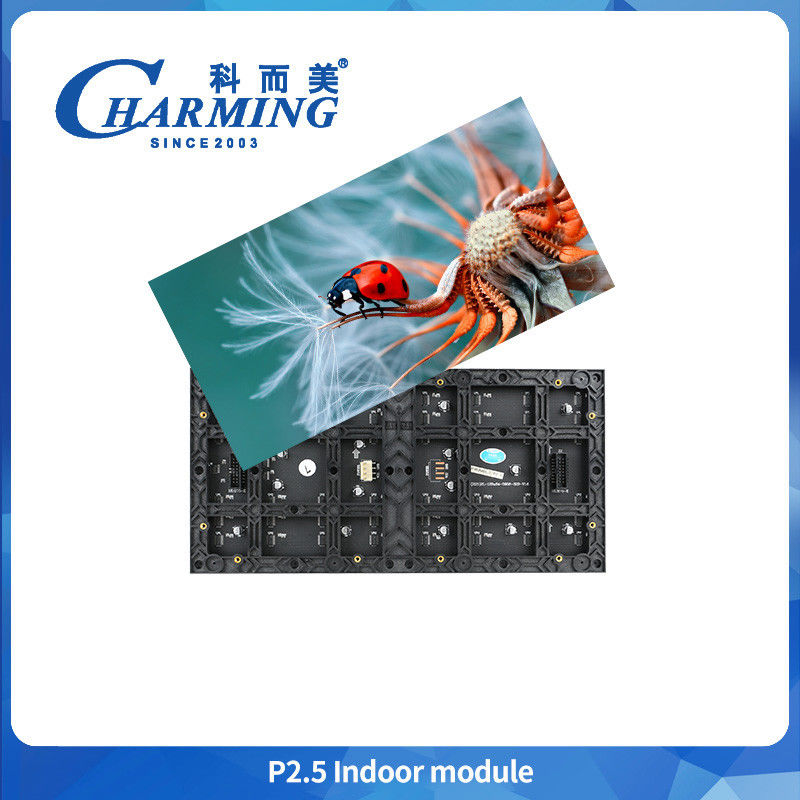

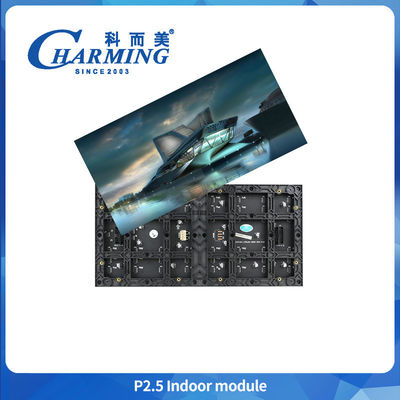

320x160MM P2 P2.5 P3 P4 Video Wall Screen Led Modules For Signs Led Screen Indoor 4k High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Brightness: | 600-800cd/m² | Working Temperature: | -20 ~ 50°C |
|---|---|---|---|
| Life Span: | ＞50000 Hours | Working Humidity: | 10%-90% |
| Module Size: | 320x160MM | Module Max.Power（W）: | 24W |
| Pixel Density(Dot/㎡ ): | 160000 Dot/m² | Refresh Rate: | 3840Hz / 1920Hz |
| LED Standard: | SMD2020 | Viewing Angle: | 120 ° |
| Highlight: | 4k Video Wall Screen Led Modules,P2.5 Video Wall Screen Led Modules,Indoor Video Wall Screen Led Modules |
||
Product Description
320x160MM P2 P2.5 P3 P4 Video Wall Screen Led Modules For Signs Led Screen Indoor 4k High Refresh Rate
Product introduce:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.Clear picture without flicker and distortion.No light leakage trouble
3.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements
4. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Fastest Delivery and Best Online Services
Charming LED tech provides best online services to the customers.We are always ready to assist you when you need us. Also we take good care of the safety of the products. We work with the leading logistics who ensure fastest and safest delivery of your products.
Technology Training And Documents and Certification
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We provide the operation manual, software, test report and so on.
3. We can also provide all kinds of certification such as CE, UL and so on.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Company Introduction
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led. It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications. Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 22 years.
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
What we offer to customer?
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Paypal, or other is ok .This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Contact us
Email: charming19@charmingled.net
WhatsApp: +86 13924818164
