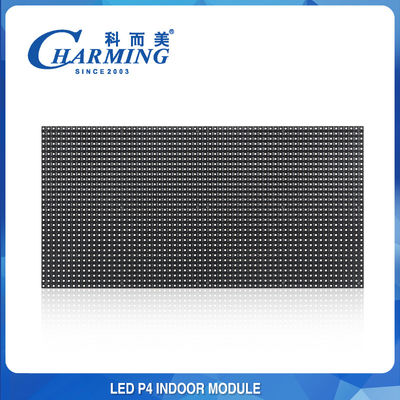

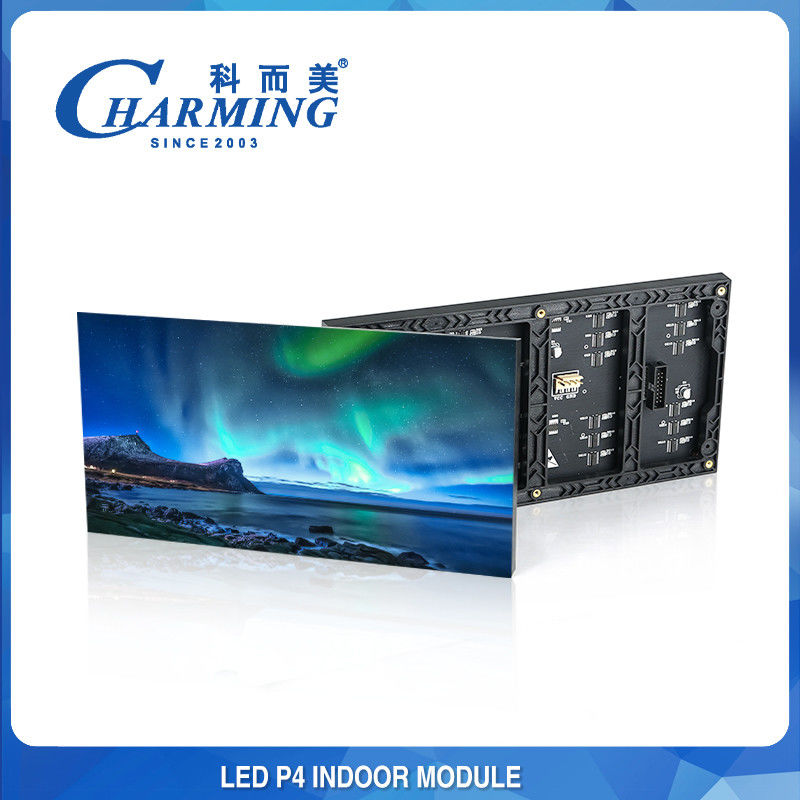

4mm Smd 2020 Smd Board Module Machines For Shopping Malls Restaurant & Hotel Supplies Video Wall P4 16 Bit High Grayscale Advertising Led Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Viewing Angle: | 120° | Brightness: | 600-800CD/m² |
|---|---|---|---|
| Module Size: | 320x160MM | Working Temperature: | -20 ~ 50°C |
| Pixel Density(Dot/㎡ ): | 160000 Dot/m² | Refresh Rate（Hz）: | 3840Hz / 1920Hz |
| IP Grade: | IP50 Indoor | LED Standard: | Smd 2020 Standard |
| Grey Level: | 16 Bit | Module Max.Power（W）: | 24W |
| Highlight: | Restaurant Led Display Screen,4mm Smd Led Display Screen,Shopping Malls Led Display Screen |
||
Product Description
4mm Smd 2020 Smd Board Module Machines For Shopping Malls Restaurant & Hotel Supplies Video Wall P4 16 Bit High Grayscale Advertising Led Display Screen
Product introduce
1.Precision welding fine standards.
2.Magnetic front maintenance, easy and quick installation.
3.120° wide viewing angle, immersive restoration experience, enjoy a visual feast at any time.
Product Details
1.Lightweight design, quiet and efficient cooling.
2.High refresh rate, low power consumption, high definition and smooth video.
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Professional Manufacturer of led display
1.Fast delivery: Usually 6-8 working days.
2.Remote controlling and adjusting are available.
3. Excellent R&D team,factory Price and assure you quality goods.
4. Wooden case or flight case,you are the boss.
5.Your reply will be replied within 24 hours.
6.OEM service,No MOQ.
7. Offering free design drawing as requested.
8. Easy installation,regular items in Stocks.
Project Cases
Company Introduction
CHARMING-LED is a confident LED screen supplier in the Chinese entertainment display market with over 20 years of experience in implementing various projects. It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries .
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
