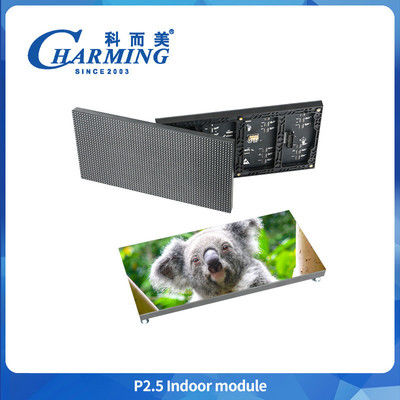

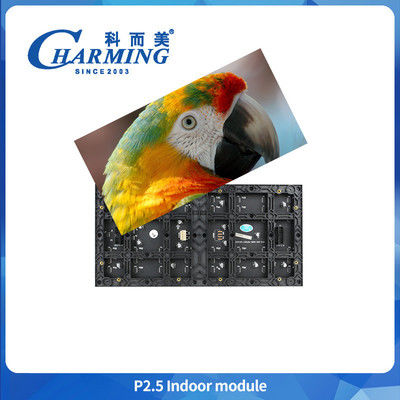

24W Indoor Outdoor P2.5 Digital Signage Display Led Screen 320x160MM Advertising Panel Events Stage Background 3840Hz Modular Led Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Brightness: | 600-800CD/m² | Viewing Angle: | 120° |
|---|---|---|---|
| Module Size: | 320x160MM | Refresh Rate（Hz）: | 3840Hz / 1920Hz |
| IP Grade: | IP50 Indoor | Pixel Density(Dot/㎡ ): | 160000 Dot/m² |
| LED Standard: | Smd 2020 Standard | Grey Level: | 16 Bit |
| Module Max.Power（W）: | 24W | Working Temperature: | -20 ~ 50°C |
| Highlight: | 24W Indoor Outdoor LED Display,320x160MM Indoor Outdoor LED Display,3840Hz Indoor Outdoor LED Display |
||
Product Description
24W Indoor Outdoor P2.5 Digital Signage Display Led Screen 320x160MM Advertising Panel Events Stage Background 3840Hz Modular Led Video Wall
Product introduce
1.Smd led display module is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.120° wide viewing angle, immersive restoration experience, enjoy a visual feast at any time.
3.Clear picture without flicker and distortion.No light leakage trouble.
Product Details
1.Lightweight design, quiet and efficient cooling.
2.We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
3.Supports one person fast installation to save 50% assembling and dissembling time and reduce labor cost.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Project Cases
Company Introduction
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm.Our experts can realize ideas for producing exclusive LED products of any complexity, implementing any non-standard solutions.It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
What we offer to customer?
Q1. What is the shipping method?
It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Q2.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q3.How can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer you a quote.
Q4.How to install and debug?
We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
