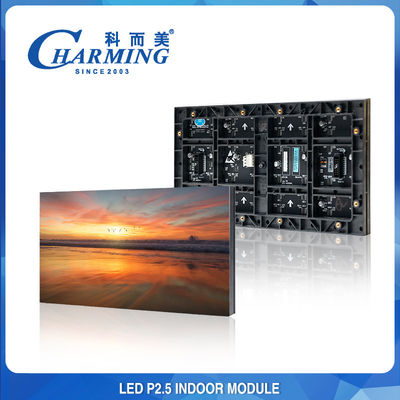

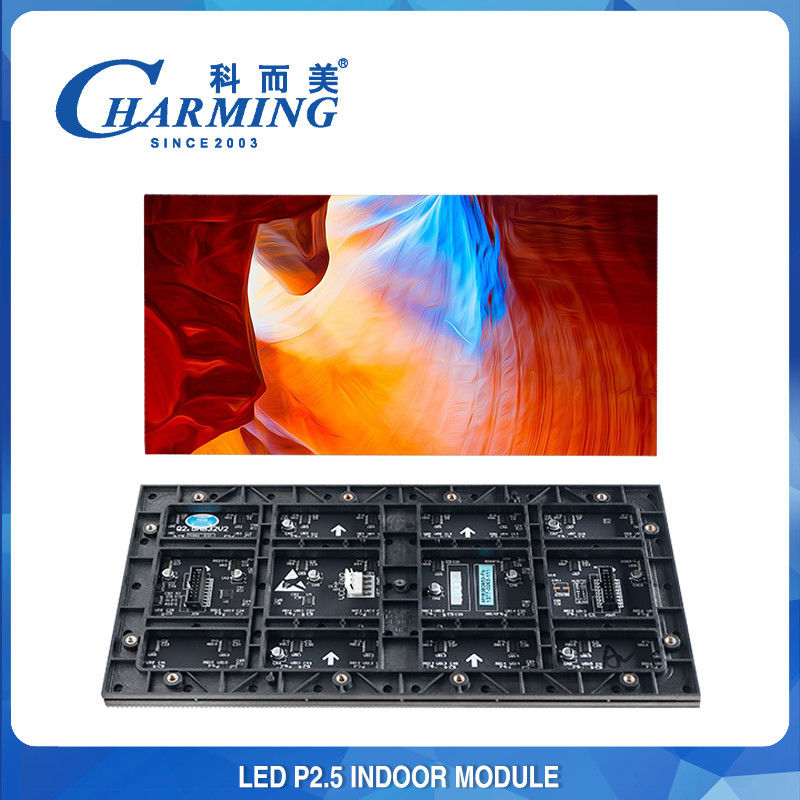

120° Wide Viewing Angle Indoor Led Module 16 Bit Video Walls Electronic Panel 4k Advertising Smd 2020 Digital Signage And Display For P2/P2.5/P3/P4/P5
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Brightness: | 600-800CD/m² | Viewing Angle: | 120° |
|---|---|---|---|
| Module Size: | 320x160MM | Refresh Rate（Hz）: | 3840Hz / 1920Hz |
| IP Grade: | IP50 Indoor | Pixel Density(Dot/㎡ ): | 160000 Dot/m² |
| LED Standard: | Smd 2020 Standard | Grey Level: | 16 Bit |
| Module Max.Power（W）: | 24W | Working Temperature: | -20 ~ 50°C |
| Highlight: | P5 led module,4k advertising led module,16 bit video walls led module |
||
Product Description
120°wide viewing angle indoor led module 16 bit video walls electronic panel 4k advertising smd 2020 digital signage and display for P2/P2.5/P3/P4/P5
Product introduce
1.Clear picture without flicker and distortion.No light leakage trouble.
2.120° wide viewing angle, immersive restoration experience, enjoy a visual feast at any time.
3.Smd led display module is manufactured by using best quality material,we make the module and cabinet by ourselves.
Product Details
1.We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2.Supports one person fast installation to save 50% assembling and dissembling time and reduce labor cost.
3.Lightweight design, quiet and efficient cooling.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
