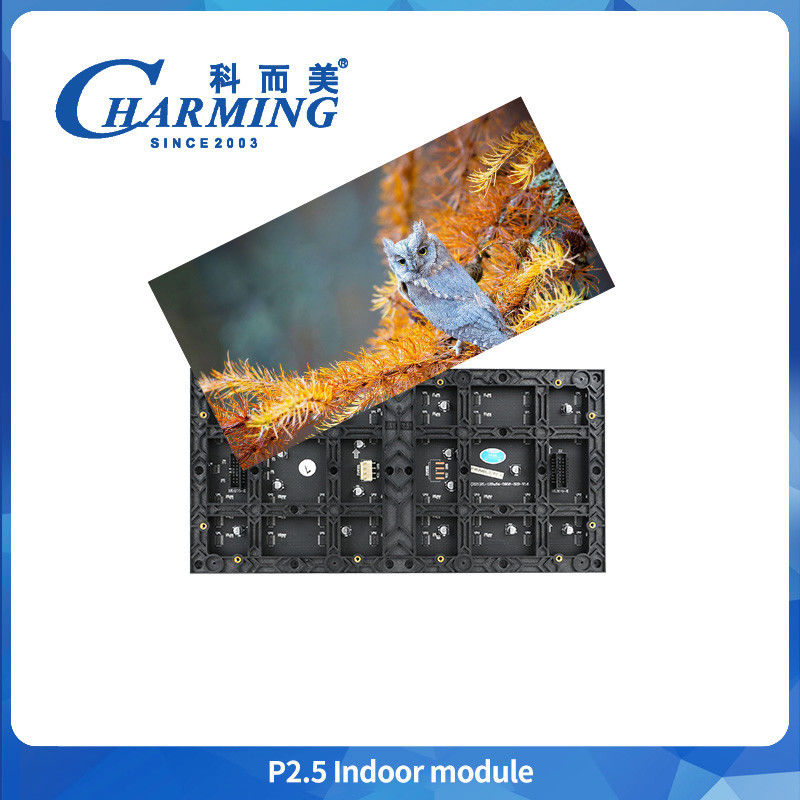

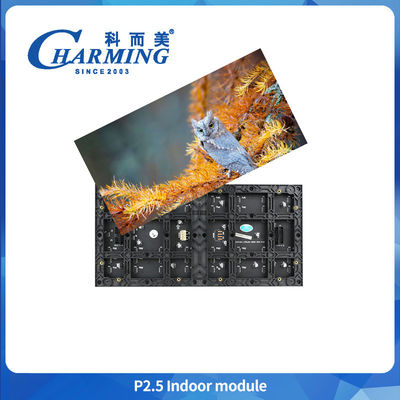

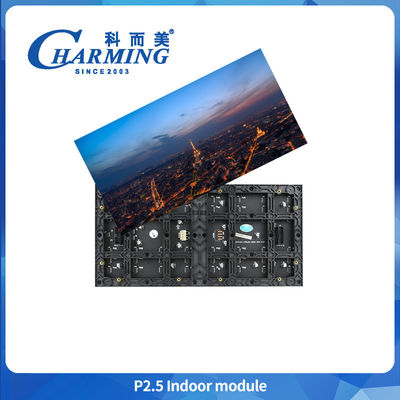

P2-P5 Indoor Pantalla Retail Display Ad Digital Signage 320x160mm 3d Efficient Cooling Video Led Screens For Indoor Commercials Modules Led Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3/P4/P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Brightness: | 600-800CD/m² | Viewing Angle: | 120° |
|---|---|---|---|
| Module Size: | 320x160MM | Refresh Rate（Hz）: | 3840Hz / 1920Hz |
| IP Grade: | IP50 Indoor | Pixel Density(Dot/㎡ ): | 160000 Dot/m² |
| LED Standard: | Smd 2020 Standard | Grey Level: | 16 Bit |
| Module Max.Power（W）: | 24W | Working Temperature: | -20 ~ 50°C |
| Highlight: | P5 Indoor LED Display Modules,3d Indoor LED Display Modules,320x160mm Indoor LED Display Modules |
||
Product Description
Low Price P2-P5 Indoor Pantalla Retail Display Ad Digital Signage 320x160mm 3d Efficient Cooling Video Led Screens For Indoor Commercials Modules Led Wall
Product introduce
1.Magnetic front service or Back service with screw.
2.High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm.
3.Clear picture without flicker and distortion.No light leakage trouble.
Product Details
1.Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
2.Smd led display module is manufactured by using best quality material,we make the module and cabinet by ourselves.
3.High-efficiency cooling, No fan ,mute design, noise-free.
3.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P4 | P5 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
22W | 24W |
25W |
20W | 22W |
|
Scan Mode |
1/40scan | 1/32scan |
1/32scan |
1/16scan | 1/16scan |
|
Refresh Rate(Hz) |
1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
62500 Dot/m²
|
40000 Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
800CD/M² |
≥800CD/M² | ≥600CD/M² | ≥800CD/M² | ≥800CD/M² |
|
Viewing Angle |
120° |
||||
|
IP Rate |
IP50 |
||||
|
Life Span
|
≥50000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
16 bit |
||||
|
Working Temperature |
20~60℃ |
||||
|
Working Humidity |
10%~90%RH |
||||
|
Life Span |
≥50000 Hours |
||||
|
Working Voltage |
AC110V/220V | ||||
Project Cases
Company Introduction
Charming LED display is Top-End Quality LED Display Manufacturer In China.It is a Hi-tech enterprise, integrating R&D, production, Marketing, technical support and service of LED screen solution in the field of outdoor & indoor application.Also we take good care of the safety of the products. We work with the leading logistics who ensure fastest and safest delivery of your products.Strategic Business Policy: Low Cost Control, High-quality Output.
What we offer to customer?
Q1. How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q2.What's the warranty?
2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q3.What is your lead time?
It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q4.How to install and debug?
We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q5.How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with
your complains and feedback.We also offer 24-hour online service to help you solving problems.
Contact us
Email :charming39@charmingled.net
WhatsApp and Wechat :+8613924818114
