Full Color P1.86/P2/P2.5/P3.076 Indoor Led Soft Module 800hz High Brightness For Cylindrical Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3.076 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Maintenance Method: | Pre Maintenance | Brightness（cd/m²）: | 400-800 |
|---|---|---|---|
| Grey Level: | 14-16Bit | Working Temperature: | -20~+50°C |
| Protection Level: | IP40 | Scan Mode（Scan): | 1/32 |
| Refresh Rate（Hz）: | 3840-7680 | Module Weight (g): | 170g/250g/255g/270g |
| Highlight: | P1.86 Indoor Led Soft Module,P3.076 Indoor Led Soft Module,P2 Indoor Led Soft Module |
||
Product Description

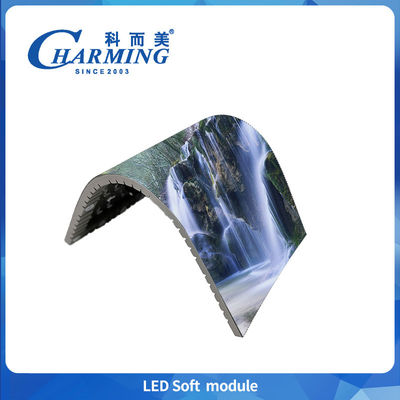

Full Color P1.86/P2/P2.5/P3.076 Indoor Led Soft Module 800hz High Brightness For Cylindrical Screen
Product Features:
Strong magnetic Adsorption installation
Buckle connector

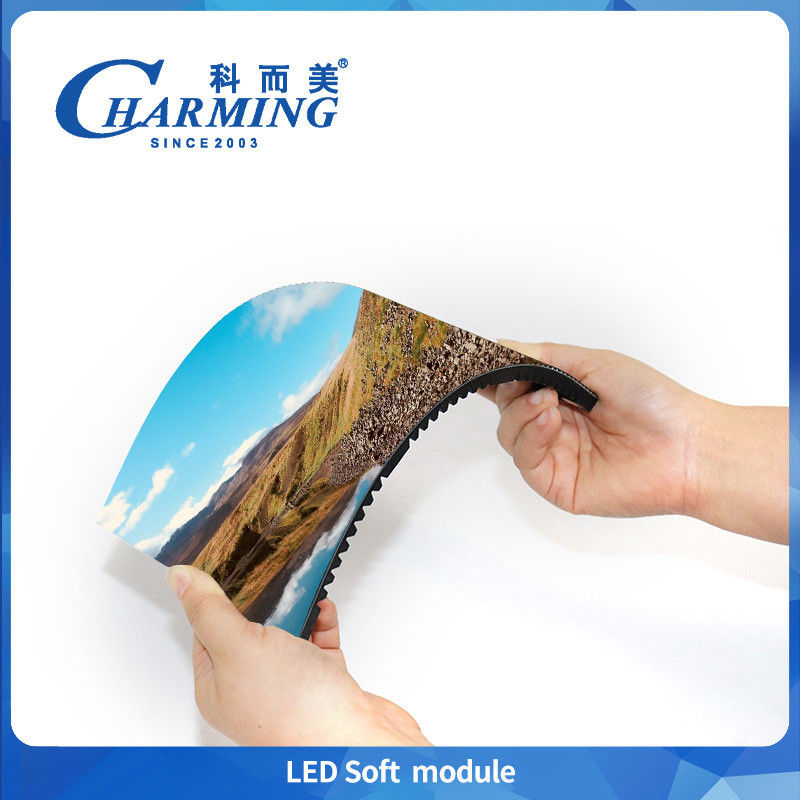

Minimum bending diameter:
Bending curvature ≥135°
Module standardized size design 320x160mm, 240x120mm,256x128mm,Low current,
low heat, high contrast, high refresh rate;
Product parameters
| Type Number | P2 | P2.5 | P3.076 | P4 |
| Dimension(MM) | 320×160×7.5MM | 320×160×7.5MM | 320×160×7.5MM | 256×128×7.5MM |
| Module weight (g) | 270 | 270 | 250 | 255 |
| Scan Mode | 1/40 Scan | 1/32 Scan | 1/26 Scan | 1/32Scan |
| Module Resolution(L*W) | 160*80 | 128*64 | 104*52 | 64*32 |
| Brightness(CD/㎡) | ＞700 | ＞800 | ＞700 | ＞400 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Refresh Rate(Hz) | 7680 | 7680 | 1920/3840 | 1920/3840 |
| Protection Level | IP40 | |||
| Maintenance Method | Pre maintenance | |||
| Grey Level | 14-16bit | |||
| Working Temperature | -20~50℃ | |||
| Pixel Density(Dot/㎡) | 250000Dot/㎡ | 160000Dot/㎡ | 105625Dot/㎡ | 62500Dot/㎡ |
| Life Span | ≥30000 Hours | |||
| Working Voltage | AC 220V/(110V)±15% | |||
Product Case
Warranty
We guarantee all our displays, modules, and parts for two full years. During this time, we will replace or amend all our goods for free if there is something
wrong with them.
we provide lifetime maintenance and charge only for the raw materials. We provide technology training free, which contains the operation and maintenance
training of the LED screens in the factory.
We also provide the operation manual, software, test report and, so on. Any associated CAD drawing on how to fix up the display and some other expert
suggestions will be provided.
What we offer to customer?
Q1. How can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer you a quote.
Q2.How to install and debug?
We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q3.How about your delivery time?
Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4.What's the warranty?
2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q5.How to install and debug?
We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
If you want to know more details, welcome to inquire!
