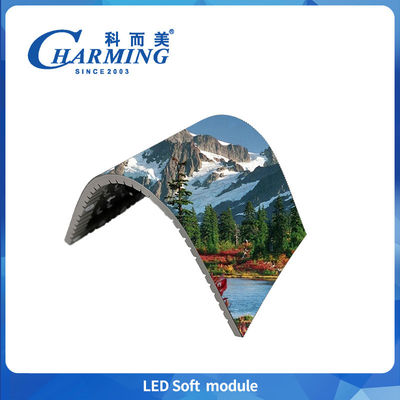

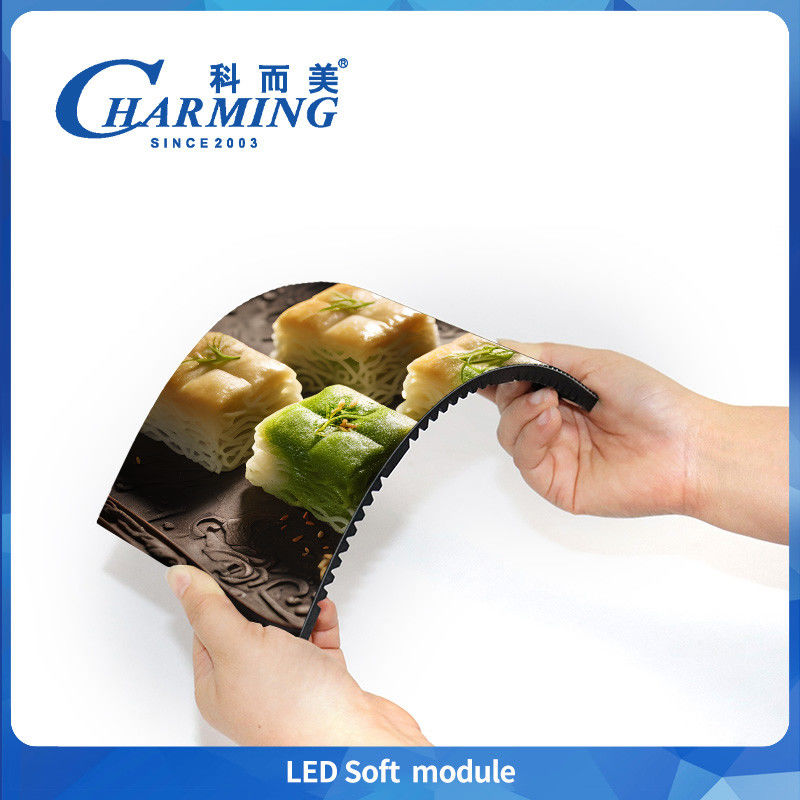

320x160 Indoor Led Soft Module P2 P2.5 P3.076 7680 High Refresh Rate Module Display For Artistic Forms
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3.076 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Dimension(MM): | 320×160×7.5MM | Protection Level: | IP40 |
|---|---|---|---|
| Scan Mode（Scan): | 1/32 | Refresh Rate（Hz）: | 3840hz / 7680hz |
| Grey Level: | 14-16Bit | Brightness（cd/m²）: | 400-800 |
| Working Temperature: | -20~+50°C | Working Humidity: | 10-65%RH |
| Life Span(Hours): | ≥ 30000 | ||
| Highlight: | P3.076 Indoor Led Soft Module,P2 Indoor Led Soft Module,P2.5 Indoor Led Soft Module |
||
Product Description
320x160 Indoor Led Soft Module P2 P2.5 P3.076 7680 High Refresh Rate Module Display For Artistic Forms
Product Features:
Strong magnetic adsorption installation
Buckle connector
Product Parameters
| Type Number | P2 | P2.5 | P3.076 |
| Dimension(MM) | 320×160×7.5MM | 320×160×7.5MM | 20×160×7.5MM |
| Module weight (g) | 270 | 270 | 250 |
| Scan Mode | 1/40 Scan | 1/32 Scan | 1/26 Scan |
| Module Resolution(L*W) | 160*80 | 128*64 | 104*52 |
| Brightness(CD/㎡) | ＞700 | ＞800 | ＞700 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 |
| Refresh Rate(Hz) | 7680 | 7680 | 1920/3840 |
| Protection Level | IP40 | ||
| Maintenance Method | Pre maintenance | ||
| Grey Level | 14-16bit | ||
| Working Temperature | -20~50℃ | ||
| Pixel Density(Dot/㎡) | 250000Dot/㎡ | 160000Dot/㎡ | 105625Dot/㎡ |
| Life Span | ≥30000 Hours | ||
| Working Voltage | AC 220V/(110V)±15% | ||
Product Case
Warranty
We guarantee all our displays, modules, and parts for two full years. During this time, we will replace or amend all our goods for free if there is something
wrong with them.
we provide lifetime maintenance and charge only for the raw materials. We provide technology training free, which contains the operation and maintenance
training of the LED screens in the factory.
We also provide the operation manual, software, test report and, so on. Any associated CAD drawing on how to fix up the display and some other expert
suggestions will be provided.
What we offer to customer?
Please tell me size of led display,where will the display be used.
We will provide drawings or Teamviewer to help you install them.
-Normally, the display will be shipped by air and sea, we suggest you go with by sea because it is cheaper.
If you want to know more details, welcome to contact me!
