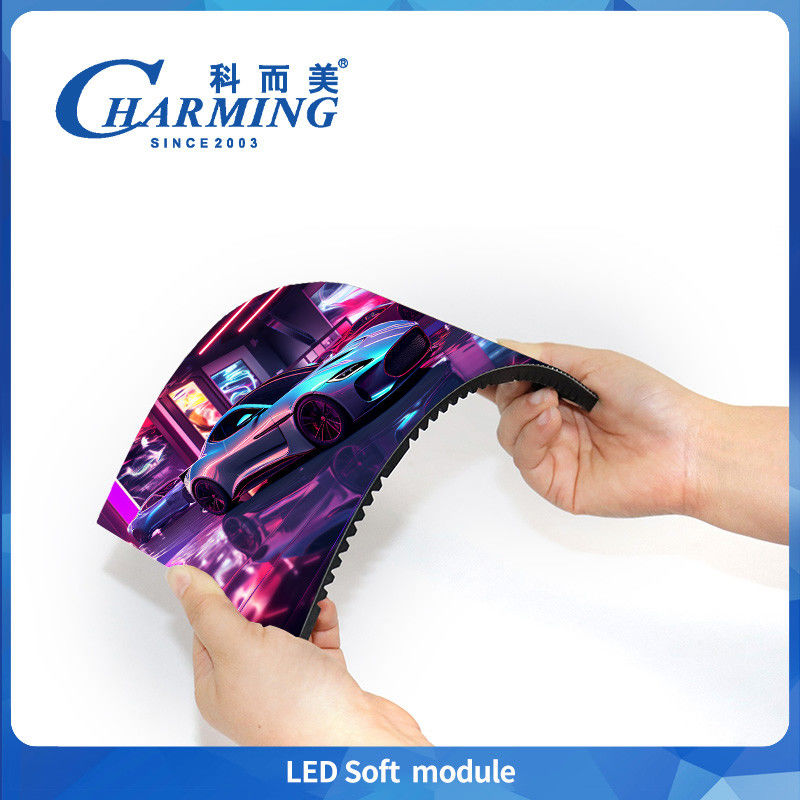

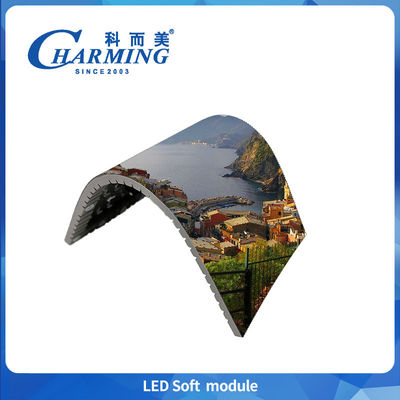

Indoor Led Soft Module P1.86/P2/P2.5/P3.076 Low Power Low Heat RGB Led Module For Wave Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3.076 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| LED Standard: | SMD1515/SMD2020 | Grey Level: | 14-16Bit |
|---|---|---|---|
| Pixel Pitch(MM): | P1.86/P2/P2.5/P3.076 | Maintenance Method: | Pre Maintenance |
| Protection Level: | IP40 | Life Span: | ≥30000 Hours |
| Scan Mode（Scan): | 1/32 | Refresh Rate（Hz）: | 3840-7680 |
| Module Weight (g): | 250/270 | ||
| Highlight: | P1.86 Indoor Led Soft Module,P2 Indoor Led Soft Module,P2.5 Indoor Led Soft Module |
||
Product Description
Indoor Led Soft Module P1.86/P2/P2.5/P3.076 Low Power Low Heat RGB Led Module Suitable For Wave Screen
Product Features:
Buckle connector
Stronger assembly wiring ensures more stable transmission
Product parameters
| Type Number | P1.86 | P2 | P2.5 | P3.076 |
| Dimension(MM) | 320×160×7.5MM | 320×160×7.5MM | 320×160×7.5MM | 320×160×7.5MM |
| Module weight (g) | 270 | 270 | 270 | 250 |
| Scan Mode | 1/43Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan |
| Module Resolution(L*W) | 172*86 | 160*80 | 128*64 | 104*52 |
| Brightness(CD/㎡) | ＞800 | ＞700 | ＞800 | ＞700 |
| LED Standard | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 | 1920/3840 |
| Protection Level | IP40 | |||
| Maintenance Method | Pre maintenance | |||
| Grey Level | 14-16bit | |||
| Working Temperature | -20~50℃ | |||
| Pixel Density(Dot/㎡) | 288906Dot/㎡ | 250000Dot/㎡ | 160000Dot/㎡ | 105625Dot/㎡ |
| Life Span | ≥30000 Hours | |||
| Working Voltage | AC 220V/(110V)±15% | |||
Product Case& Size
Warranty
We guarantee all our displays, modules, and parts for two full years. During this time, we will replace or amend all our goods for free if there is something
wrong with them.
we provide lifetime maintenance and charge only for the raw materials. We provide technology training free, which contains the operation and maintenance
training of the LED screens in the factory.
We also provide the operation manual, software, test report and, so on. Any associated CAD drawing on how to fix up the display and some other expert
suggestions will be provided.
