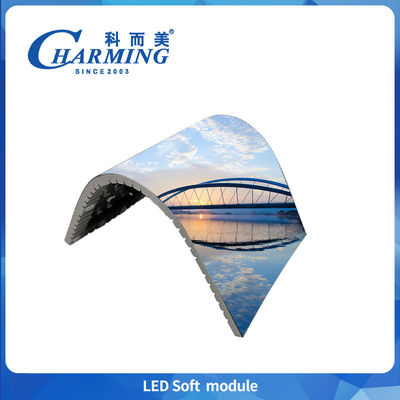

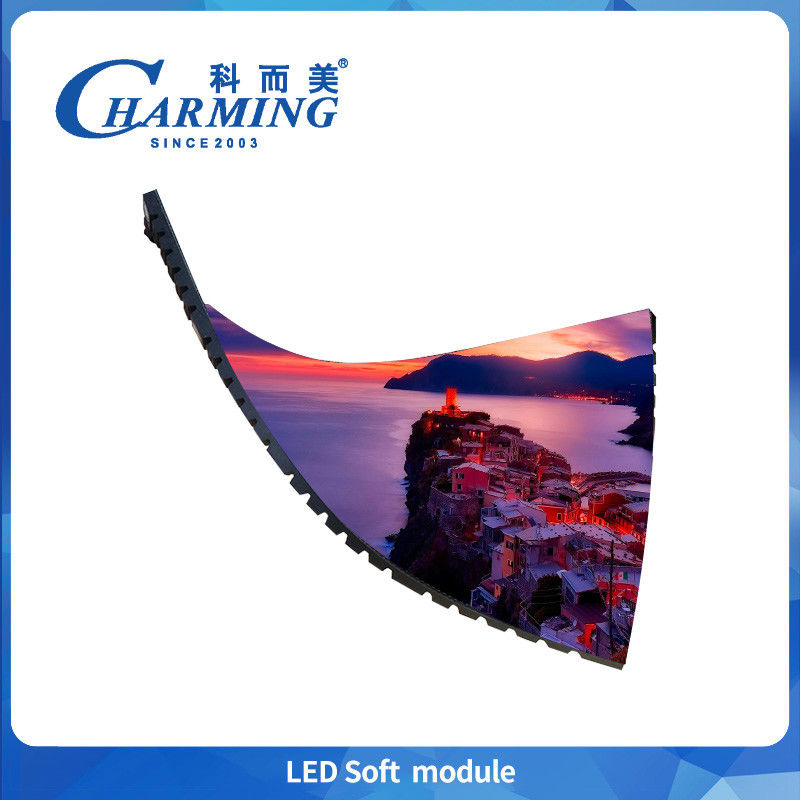

4k P2 P2.5 P3.076 Indoor Led Soft Module 400-800 High Brightness Rgb Led Flexibility Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3.076 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Refresh Rate（Hz）: | 3840-7680 | Brightness（cd/m²）: | 400-800 |
|---|---|---|---|
| Protection Level: | IP40 | Grey Level: | 14-16Bit |
| Working Humidity: | 10-65%RH | Scan Mode（Scan): | 1/32 |
| Maintenance Method: | Pre Maintenance | Life Span(Hours): | ≥ 30000 |
| Working Temperature: | -20~+50°C | ||
| Highlight: | 4k Indoor Led soft Module,P2 Indoor Led soft Module,P3.076 Indoor Led soft Module |
||
Product Description
4k P2 P2.5 P3.076 Indoor Led soft Module400-800 High Brightness Rgb Led FlexibilityDisplay
Product Features:
Strong magnetic adsorption installation
18 magnets are matched with the single board, and each magnet has a magnetic content UP to 2000GS.
Adjustabls height of magnet to improve overall screen flatness.
Buckle connector
Stronger assembly wiring ensures more stable transmission.
Product Parameters
| Type Number | P2 | P2.5 | P3.076 |
| Dimension(MM) | 320×160×7.5MM | 320×160×7.5MM | 20×160×7.5MM |
| Module weight (g) | 270 | 270 | 250 |
| Scan Mode | 1/40 Scan | 1/32 Scan | 1/26 Scan |
| Module Resolution(L*W) | 160*80 | 128*64 | 104*52 |
| Brightness(CD/㎡) | ＞700 | ＞800 | ＞700 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 |
| Refresh Rate(Hz) | 7680 | 7680 | 1920/3840 |
| Protection Level | IP40 | ||
| Maintenance Method | Pre maintenance | ||
| Grey Level | 14-16bit | ||
| Working Temperature | -20~50℃ | ||
| Pixel Density(Dot/㎡) | 250000Dot/㎡ | 160000Dot/㎡ | 105625Dot/㎡ |
| Life Span | ≥30000 Hours | ||
| Working Voltage | AC 220V/(110V)±15% | ||
Product Case
Warranty
We guarantee all our displays, modules, and parts for two full years. During this time, we will replace or amend all our goods for free if there is something
wrong with them.
we provide lifetime maintenance and charge only for the raw materials. We provide technology training free, which contains the operation and maintenance
training of the LED screens in the factory.
We also provide the operation manual, software, test report and, so on. Any associated CAD drawing on how to fix up the display and some other expert
suggestions will be provided.
