P1.86-P4 Indoor LED Display Soft Modules 4K Maximum Bend Up To 135° For Commercial Advertising Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Refresh Rate(Hz): | 3840-7680Hz | Grey Level: | 14-16Bit |
|---|---|---|---|
| Protection Level: | IP40 Protection Level | Life Span(Hours): | ≥ 30000 |
| Working Voltage: | AC 110/220V,50/60Hz | Working Humidity: | 10-65%RH |
| Brightness（cd/m²）: | 400-800 | Scan Mode（Scan): | 1/32 |
| Module Max.Power（W）: | 6-25W | ||
| Highlight: | P1.86 Indoor LED Display Soft Modules,4K Indoor LED Display Soft Modules |
||
Product Description

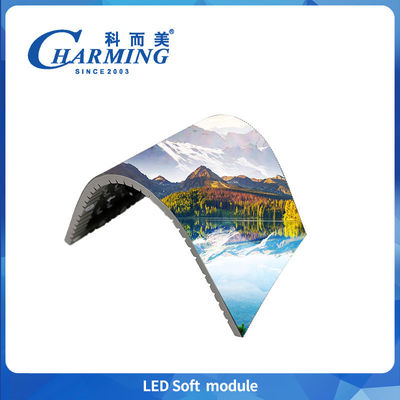

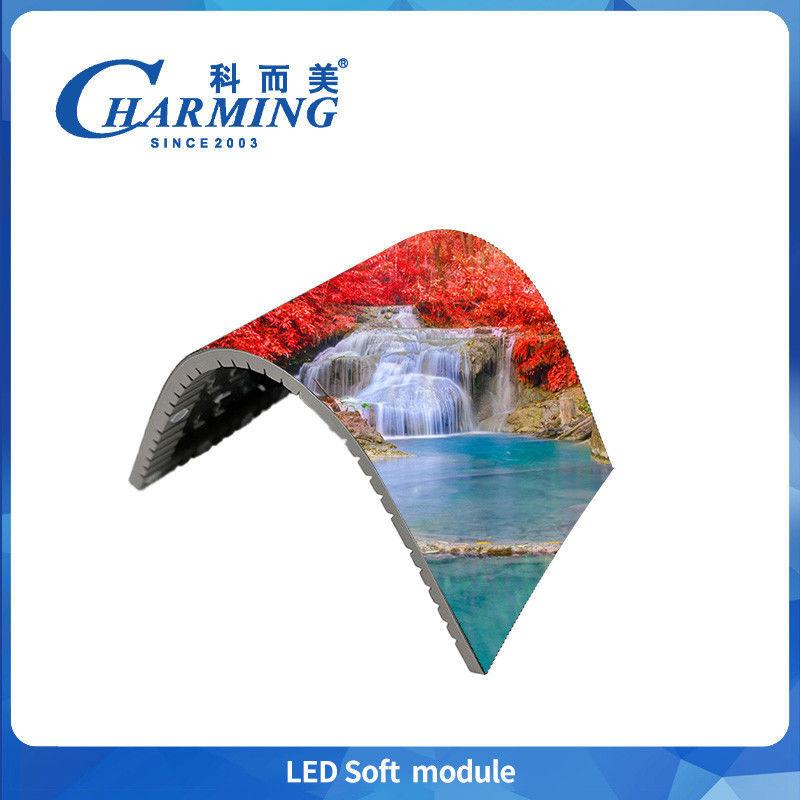

P1.86-P4 Indoor LED Display Soft Modules 4K Maximum Bend Up To 135° For Commercial Advertising Display
Product introduce
1.Module bending curvature ≥ 135°.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.High refresh rate and gray scale ensures the picture quality remains seamless.
4.Adjustable magnet: The height of the magnet can be adjusted to improve the flatness of the entire screen.
Product Details
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.The final products feature supreme quality and offers best outputs.
3.Show all kinds of word, text, graph, picture, video, 2-dimention,
3-dimention cartoon and other information with your PC does synchronously.
4.Smd led display module is manufactured by using best quality material,we make the module by ourselves.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P3.076 | P4 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
25W | 25W |
13W |
18W | 6W |
|
Scan Mode |
1/40scan | 1/32scan |
1/20scan |
1/26scan | 1/32scan |
|
Refresh Rate(Hz) |
7680Hz | 7680Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
105625 Dot/m²
|
62500Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
700CD/M² |
≥800CD/M² | ≥800CD/M² | ≥700CD/M² | ≥400CD/M² |
|
Viewing Angle |
135° |
||||
|
IP Rate |
IP40 |
||||
|
Life Span
|
≥30000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
14-16 bit |
||||
|
Working Temperature |
20~50℃ |
||||
|
Working Humidity |
10%~65%RH |
||||
|
Maintenance Method
|
Pre maintenance | ||||
|
Working Voltage |
AC110V/220V | ||||
