3C Certified Brand P2.5 Indoor LED Display Soft Magnetic Modules 320x160mm Video Wall Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Refresh Rate(Hz): | 3840-7680Hz | Grey Level: | 14-16Bit |
|---|---|---|---|
| Protection Level: | IP40 Protection Level | Life Span(Hours): | ≥ 30000 |
| Working Voltage: | AC 110/220V,50/60Hz | Working Humidity: | 10-65%RH |
| Brightness（cd/m²）: | 400-800 | Scan Mode（Scan): | 1/32 |
| Module Max.Power（W）: | 6-25W | ||
| Highlight: | P2.5 Indoor LED Display Modules,320x160mm Indoor LED Display Modules,Indoor LED Display Modules |
||
Product Description

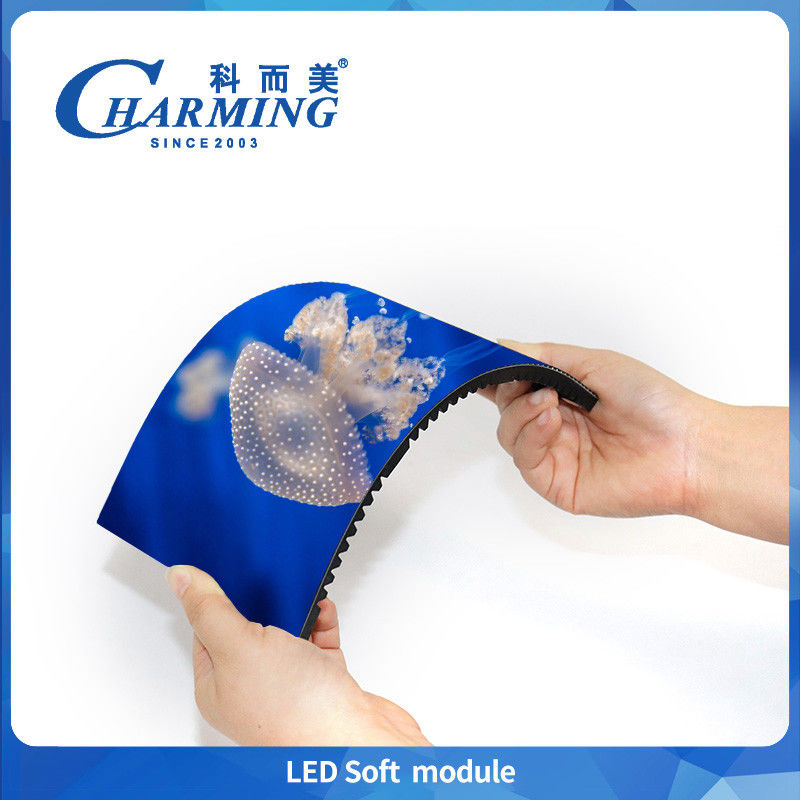

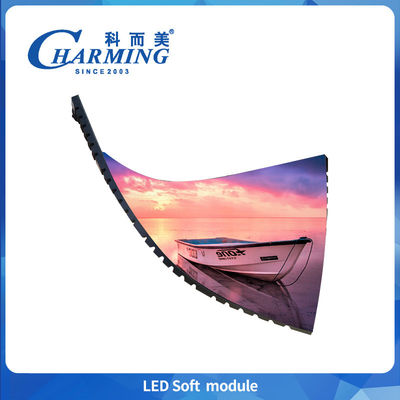

3C Certified Brand:P2.5 Indoor LED Display Soft Magnetic Modules 320x160mm Video Wall Panel
Product introduce
1.Clear picture without flicker and distortion.No light leakage trouble.
2.High refresh rate and gray scale ensures the picture quality remains seamless.
3.Super thin & light weight:Slim and light weight,quick disassembly.
Product Details
1.Module bending curvature ≥ 135°.
2.High-efficiency cooling, No fan ,mute design, noise-free.
3.The final products feature supreme quality and offers best outputs.
4.Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
5.Smd led display module is manufactured by using best quality material,we make the module by ourselves.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P3.076 | P4 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
25W | 25W |
13W |
18W | 6W |
|
Scan Mode |
1/40scan | 1/32scan |
1/20scan |
1/26scan | 1/32scan |
|
Refresh Rate(Hz) |
7680Hz | 7680Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
105625 Dot/m²
|
62500Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
700CD/M² |
≥800CD/M² | ≥800CD/M² | ≥700CD/M² | ≥400CD/M² |
|
Viewing Angle |
135° |
||||
|
IP Rate |
IP40 |
||||
|
Life Span
|
≥30000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
14-16 bit |
||||
|
Working Temperature |
20~50℃ |
||||
|
Working Humidity |
10%~65%RH |
||||
|
Maintenance Method
|
Pre maintenance | ||||
|
Working Voltage |
AC110V/220V | ||||
