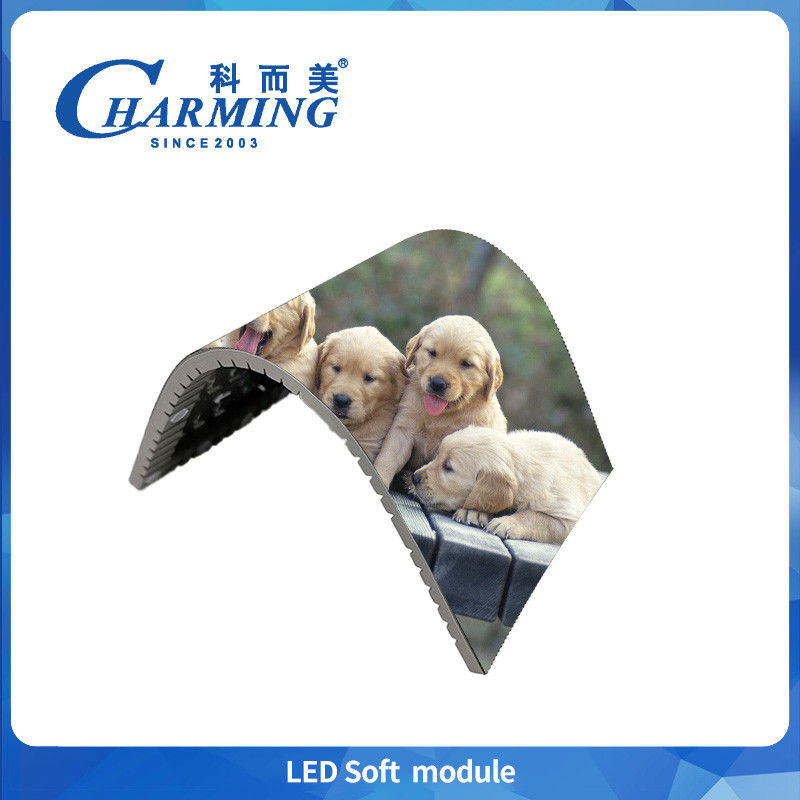

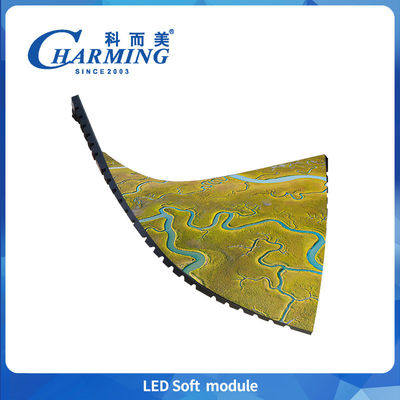

Flexible Module P2-P3.076 Indoor Led Soft Module 16 Bit High Gray Scale Full Color For Shopping Mall
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P2/P2.5/P3.076 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 10 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 1000 PCS per week |
|
Detail Information |
|||
| Refresh Rate（Hz）: | 3840-7680 | Brightness(CD/㎡): | >800 |
|---|---|---|---|
| Brightness（cd/m²）: | 400-800 | Working Temperature: | -20~+50°C |
| Protection Level: | IP40 | Scan Mode（Scan): | 1/32 |
| Maintenance Method: | Pre Maintenance | Life Span(Hours): | ≥ 30000 |
| Grey Level: | 14-16Bit | Module Weight (g): | 250g/270g |
| Highlight: | Shopping Mall Indoor Led Soft Module,Indoor Led Soft Module,16 Bit Indoor Led Soft Module |
||
Product Description
Flexible Module P2-P3.076 Indoor Led Soft Module 16 Bit High Gray Scale Full Color For Shopping Mall
Product Features:
Strong magnetic adsorption installation
18 magnets are matched with the single board, and each magnet has a magnetic content UP to 2000GS.
Adjustabls height of magnet to improve overall screen flatness.
Buckle connector
Stronger assembly wiring ensures more stable transmission.
Product Parameters
| Type Number | P2 | P2.5 | P3.076 |
| Dimension(MM) | 320×160×7.5MM | 320×160×7.5MM | 20×160×7.5MM |
| Module weight (g) | 270 | 270 | 250 |
| Scan Mode | 1/40 Scan | 1/32 Scan | 1/26 Scan |
| Module Resolution(L*W) | 160*80 | 128*64 | 104*52 |
| Brightness(CD/㎡) | ＞700 | ＞800 | ＞700 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 |
| Refresh Rate(Hz) | 7680 | 7680 | 1920/3840 |
| Protection Level | IP40 | ||
| Maintenance Method | Pre maintenance | ||
| Grey Level | 14-16bit | ||
| Working Temperature | -20~50℃ | ||
| Pixel Density(Dot/㎡) | 250000Dot/㎡ | 160000Dot/㎡ | 105625Dot/㎡ |
| Life Span | ≥30000 Hours | ||
| Working Voltage | AC 220V/(110V)±15% | ||
Product Case
What we offer to customer?
-Yes. Please feel free to contact us.
We will provide drawings or Teamviewer to help you install them.
-It could be shipped by sea, by air, or by express(EMS, UPS, DHL, TNT, FEDEX and etc).
Please confirm with us before placing orders.
If you want to know more details, welcome to inquire!
