6-25w Indoor Customization Led Display Modules P1.86/p2/p2.5/p3/p3.076/p4 Digital Signage Panel 7680hz Ultra Hd Led Soft Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Refresh Rate(Hz): | 3840-7680Hz | Grey Level: | 14-16Bit |
|---|---|---|---|
| Protection Level: | IP40 Protection Level | Life Span(Hours): | ≥ 30000 |
| Working Voltage: | AC 110/220V,50/60Hz | Working Humidity: | 10-65%RH |
| Brightness（cd/m²）: | 400-800 | Scan Mode（Scan): | 1/32 |
| Module Max.Power（W）: | 6-25W | ||
| Highlight: | p3 indoor led display modules,p2 indoor led display modules,p1.86 indoor led display modules |
||
Product Description
6-25w indoor customization led display modules p1.86/p2/p2.5/p3/p3.076/p4 digital signage panel 7680hz ultra hd led soft module
Product introduce
1.high-efficiency cooling, No fan ,mute design, noise-free.
2.high refresh rate and gray scale ensures the picture quality remains seamless.
3.clear picture without flicker and distortion.No light leakage trouble.
4.magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
Product Details
1.smd led display module is manufactured by using best quality material,we make the module by ourselves.
2.super thin & light weight:Slim and light weight,quick disassembly.
3.the final products feature supreme quality and offers best outputs.

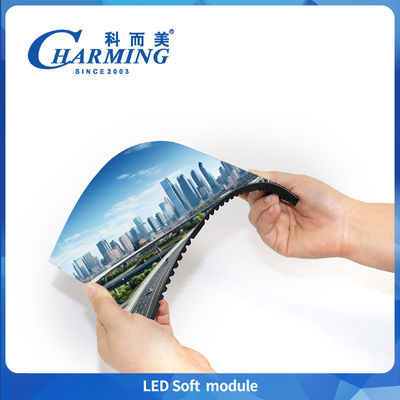

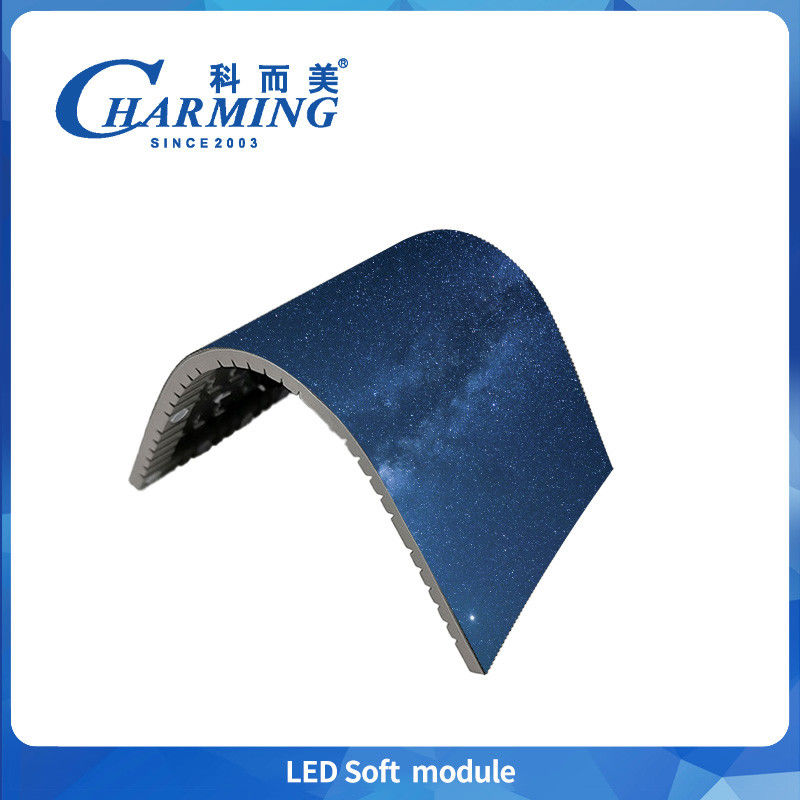

4.module bending curvature ≥ 135°.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P3.076 | P4 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
25W | 25W |
13W |
18W | 6W |
|
Scan Mode |
1/40scan | 1/32scan |
1/20scan |
1/26scan | 1/32scan |
|
Refresh Rate(Hz) |
7680Hz | 7680Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
105625 Dot/m²
|
62500Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
700CD/M² |
≥800CD/M² | ≥800CD/M² | ≥700CD/M² | ≥400CD/M² |
|
Viewing Angle |
135° |
||||
|
IP Rate |
IP40 |
||||
|
Life Span
|
≥30000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
14-16 bit |
||||
|
Working Temperature |
20~50℃ |
||||
|
Working Humidity |
10%~65%RH |
||||
|
Maintenance Method
|
Pre maintenance | ||||
|
Working Voltage |
AC110V/220V | ||||
About US
Charmingled is an LED entertainment display manufacturer located in China. We have been developing, producing and selling LED displays, LED modules and LED lights for 22 years.Charming LED tech provides best online services to the customers. We also have a professional after-sales service team and a service hotline to handle your complaints and feedback. We also provide 24-hour online service to help you solve your problemsIt has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.We work with large and established component suppliers. We guarantee the production of illuminated advertising signs and video screens at affordable prices and with extended warranties.
What we offer to customer?
1.What is the shipping method?
It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How can I get the price?
We usually quote within 24 hours after we get your inquiry.
If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
4.What's the warranty?
1 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
5.Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
