P2.5 Hd Led Video Wall For Advertising Led Soft Module P4 1/32 Scan Indoor Led Display 4k Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 5 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Refresh Rate(Hz): | 3840-7680Hz | Grey Level: | 14-16Bit |
|---|---|---|---|
| Protection Level: | IP40 Protection Level | Life Span(Hours): | ≥ 30000 |
| Working Voltage: | AC 110/220V,50/60Hz | Working Humidity: | 10-65%RH |
| Brightness（cd/m²）: | 400-800 | Scan Mode（Scan): | 1/32 |
| Module Max.Power（W）: | 6-25W | ||
| Highlight: | p4 led video wall,p2.5 led video wall,4k led video wall |
||
Product Description
p2.5 hd led video wall for advertising led soft module p4 1/32 scan indoor led display 4k screen
Product introduce
1.high-efficiency cooling, No fan ,mute design, noise-free.
2.magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
3.clear picture without flicker and distortion.No light leakage trouble.
4.high refresh rate and gray scale ensures the picture quality remains seamless.
Product Details
1.the final products feature supreme quality and offers best outputs.

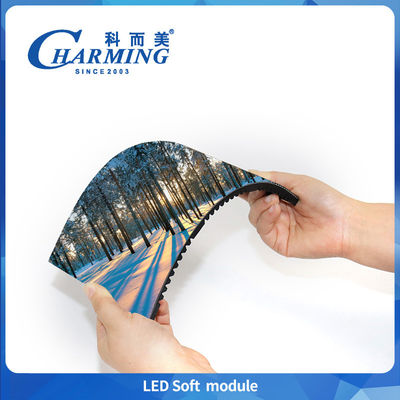

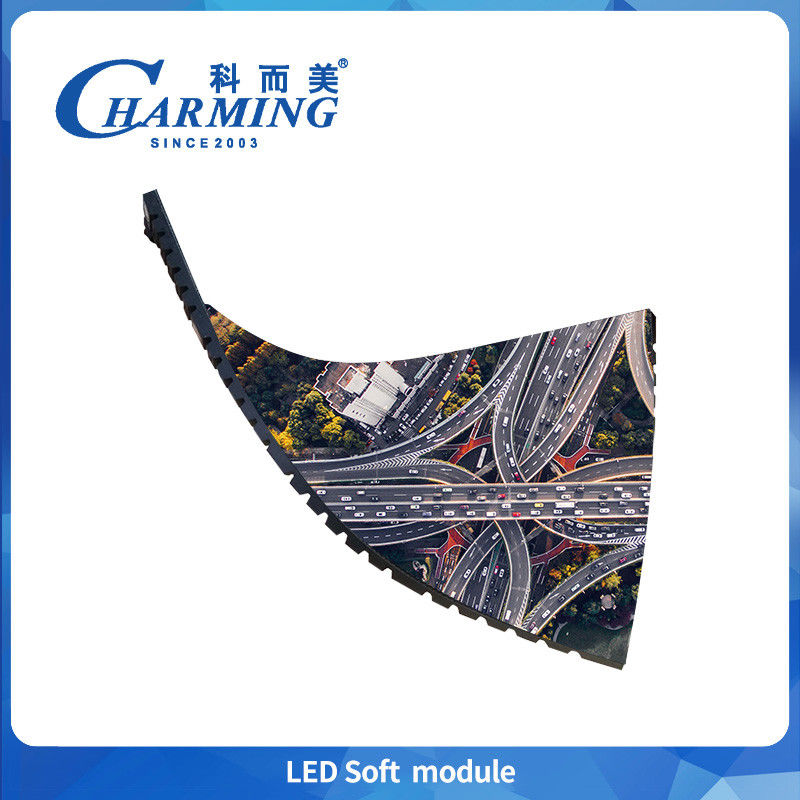

2.module bending curvature ≥ 135°.
3.smd led display module is manufactured by using best quality material,we make the module by ourselves.
4.super thin & light weight:Slim and light weight,quick disassembly.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P3.076 | P4 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
25W | 25W |
13W |
18W | 6W |
|
Scan Mode |
1/40scan | 1/32scan |
1/20scan |
1/26scan | 1/32scan |
|
Refresh Rate(Hz) |
7680Hz | 7680Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
105625 Dot/m²
|
62500Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
700CD/M² |
≥800CD/M² | ≥800CD/M² | ≥700CD/M² | ≥400CD/M² |
|
Viewing Angle |
135° |
||||
|
IP Rate |
IP40 |
||||
|
Life Span
|
≥30000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
14-16 bit |
||||
|
Working Temperature |
20~50℃ |
||||
|
Working Humidity |
10%~65%RH |
||||
|
Maintenance Method
|
Pre maintenance | ||||
|
Working Voltage |
AC110V/220V | ||||
