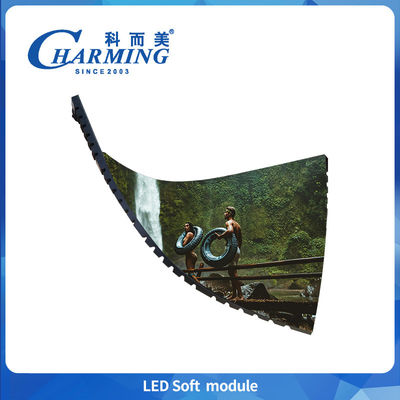

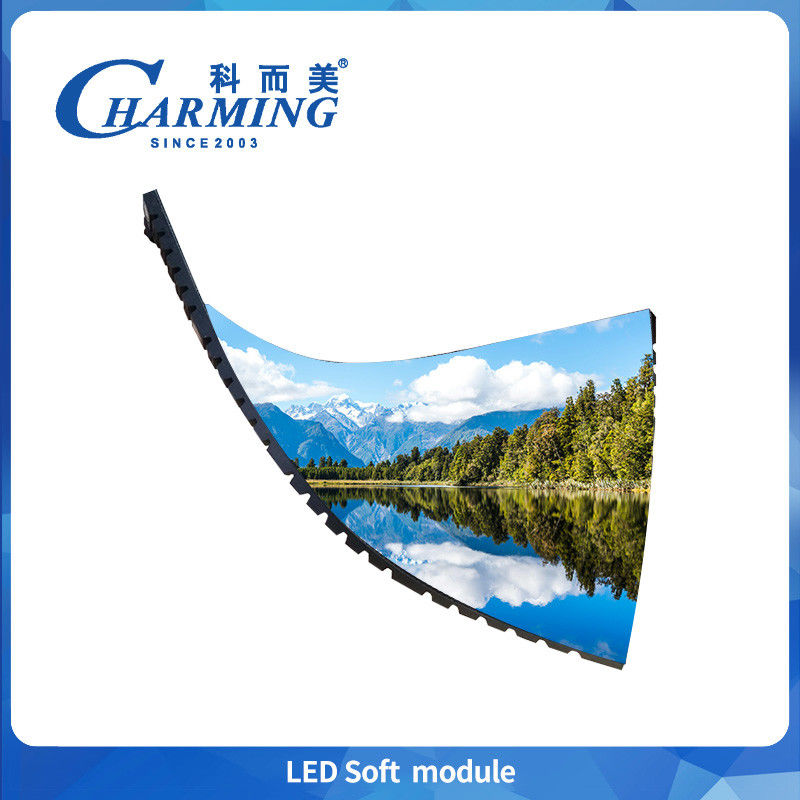

3840-7680Hz High Refresh Rate Strong Magnetic Adsorption Installation P2 P2.5 P3 P4 Flexible Soft Led Module Pantalla Led For Event
Product Details:
| Place of Origin: | China |
| Brand Name: | Charming |
| Certification: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model Number: | P1.86/P2/P2.5/P3/P3.076/P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Case, Wooden Case, Flight Case |
| Delivery Time: | 7 Working Days after Payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Cash |
| Supply Ability: | 10000 PCS per week |
|
Detail Information |
|||
| Scan Mode: | 1/32scan | Refresh Rate(Hz): | 3840-7680Hz |
|---|---|---|---|
| Working Humidity: | 10%-65%rh | Life Span: | ≥30000 Hours |
| Grey Level: | 14-16bit | Dimension(MM): | 320×160×7.5MM |
| Brightness: | 400-800 Cd/m² | Maintenance Method: | Front Maintenance |
| Highlight: | Strong Magnetic Adsorption Installation Led Module,P2.5 Flexible Led Module,Event Led Module |
||
Product Description
3840-7680Hz High Refresh Rate Strong Magnetic Adsorption Installation P2 P2.5 P3 P4 Flexible Soft Led Module Pantalla Led For Event
Product introduce:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm
3.Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor requirements;
Product Details:
1.High-efficiency cooling, No fan ,mute design, noise-free.
2.Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
3.Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
Product Parameters
|
Module Pixel |
P2 | P2.5 |
P3 |
P3.076 | P4 |
|---|---|---|---|---|---|
|
Dimension(MM) |
320x160mm | 320x160mm |
192x192mm |
256x128mm | 320x160mm |
|
Max Power(W) |
25W | 25W |
13W |
18W | 6W |
|
Scan Mode |
1/40scan | 1/32scan |
1/20scan |
1/26scan | 1/32scan |
|
Refresh Rate(Hz) |
7680Hz | 7680Hz |
1920Hz/3840Hz |
1920Hz/3840Hz | 1920Hz/3840Hz |
|
Pixel Density(Dot/ ㎡)
|
250000 Dot/m²
|
160000 Dot/m²
|
111111Dot/m²
|
105625 Dot/m²
|
62500Dot/m²
|
|
Led Standard |
SMD1515 |
SMD2020
|
SMD2020
|
SMD2020
|
SMD2020
|
|
Brightness(CD/M²) |
700CD/M² |
≥800CD/M² | ≥800CD/M² | ≥700CD/M² | ≥400CD/M² |
|
Viewing Angle |
135° |
||||
|
IP Rate |
IP40 |
||||
|
Life Span
|
≥30000 Hours
|
||||
|
Working Voltage
|
DC 5V
|
||||
|
Grey Level |
14-16 bit |
||||
|
Working Temperature |
20~50℃ |
||||
|
Working Humidity |
10%~65%RH |
||||
|
Maintenance Method
|
Pre maintenance | ||||
|
Working Voltage |
AC110V/220V | ||||
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Warranty
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Fastest Delivery and Best Online Services
Charming LED tech provides best online services to the customers.We are always ready to assist you when you need us. Also we take good care of the safety of the products. We work with the leading logistics who ensure fastest and safest delivery of your products
What we offer to customer?
Q1.How to choose a best pixel pitch?
Answer: Choose the suitable pixel model according to the closest viewing distance, the smaller the value, the clearer!
Q2. How to install and debug?
Answer: We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q3.What's the warranty?
Answer: 2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q4.What's the minimum quatity?
Answer: Sample is available! Quantity is negotiable!
Q5.How to make order?
Answer: Provide your E-mail address, detail address and phone number, we will make payment link for you!
